Detailed Description
8CBM Co
ncrete Mixer Truck 6*4
1. Mixing capacity 8m3 (6M3~14M3 is available)
2. Engine Power 290HP
3. Truck Chassis DFAC Brand (You can also choose HOWO, ISUZU, etc. )
4. RHD (Right Hand Drive) is available
| Chassis | Chassis Brand | Dongfeng |
| Chassis Model | DFD1254GJ2(RHD) |
| Drive Mode | 6*4 |
| Tire | 10.00-20 |
| Engine | Model | YC6M290-33 |
| Horsepower (Hp) | 290 |
| Displacement(ml)/Power(kw) | 9839/215 |
| Emission | Euro III |
| Main Parameter | Overall dimension (mm) | L*W*H | 8900*2500*3800 |
| wheelbase | 3800+1350 |
| Axles No. | 3 |
Weight (kg) | Gross weight | 25000 |
| Capacity | 8M 3 |
| Kerb weight | 12000 |
| Leaf spring No. | 9/10 |
| Front/Rear Trace(mm) | 1986/1860 |
| Max speed(km/h) | 90 |
| Gear Box | 9 speed gearbox |
| Front/Rear Axle Load | 5T/10T |
| Filling Rate(%) | 63% |
| Rate of Feeding(M 3/min) | ≥ 3 |
| Rate of Delivery(M 3/min) | ≥ 2.0 |
| The Remaining Rate(M 3/min) | ≤ 1.0 |
| Tube Service Speed(r/min) | 0-12 |
| Tube Dip(° ) | 13-15 |
| Hydraulic Parameters | Oil Pump | import Brand |
| Hydraulic Motors |
| Decelerator |
*********************************************************************************
********************************************************************************************

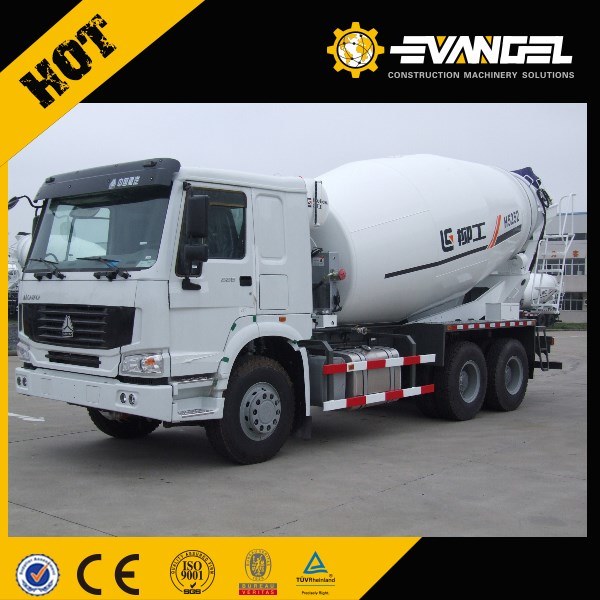

Product Image
