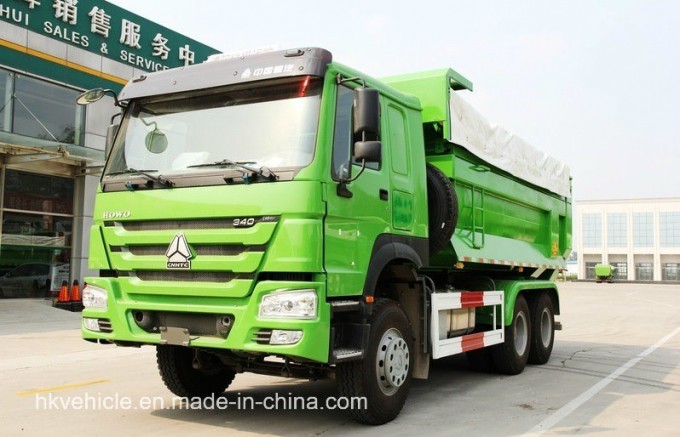

| Specifications HOWO SERIES DUMP TRUCK | |
| Model | ZZ3257N3847B Driving type: 6*4 left hand driving |
|
| Engine | Make: SINOTRUK | | |
| Diesel 4-stroke direct injection diesel engine | | |
| Engine model: WD615.47, Euro II emission standard | |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Maximum output: 371 hp (273 Kw) at 2200 rpm | | |
| Maximum torque: 1460 Nm at 1350-1600 rpm | | |
| Number of cylinder: 6 | | |
| Displacement: 9.726 L | | |
| Bore: 126 mm | | |
| Stroke: 130 mm | | |
| Specific fuel consumption: 195 g/kWh | | |
| Engine oil filling quantity: 19 l | | |
| Cooling system filling quantity (long-term filling): 40 l | |
| Thermostat with 71ºC opening begin | | |
| Twin cylinder air compssor | | |
| Rigid fan | | |
| Transmission | HW19710, 10 forwards and 2 reverse | | |
| Ratio: 14.28 10.62 7.87 5.87 4.375 3.26 2.43 1.8 1.34 1 13.91(R1) 3(R2) | | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF9, Steering with doubleT-cross section beam | |
| Rear Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles . |
| Ratio:5.73 Option: 6.72 | | |
| Chassis | frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members |
| Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis |
| | |
| Steering | ZF power steering, modol ZF8098, hydraulic steering with power assitance | |
| | |
| Brakes | Service brake: dual circuit compssed air brake | |
| Parking brake (emergency brake): spring energy, compssed air operating on front shaft and rear wheels |
| Auxiliary brake: engine exhaust brake | | |
| ABS control system: for option | | |
| Wheels & Tyres | Tire: 12.00R20 | | |
| Option:12.00R22.5 | | |
| Driver's Cab | HW70 Standard cab, with two seats, no bed, 2-arm windscreen wiper system with three speeds, |
| damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, |
| air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber |
| | |
| Electrics | Operating voltage: 24 V, negative grounded | | |
| Starter: 24 V, 5.4 Kw | | |
| Alternator: 3-phase, 28 V, 1500 W | | |
| Batteries: 2 x 12 V, 165 Ah | | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators |
| of compssed air pssure, coolant temperature, engine oil pssure and battery charging |
| Dimensions mm | Wheel base | | 3825+1350 |
| Front wheel track | | 2022 |
| Rear wheel track | | 1830 |
| Front overhang | | 1500 |
| Rear overhang | | 1739 |
| Approach angle (0) | | 19 |
| Departure angle (0) | | 26 |
| Overall length | | 7934 |
| Overall width | | 2496 |
| Overall height | | 3386 |
| Dimension of the rear dump body | 5600*2300*1500 |
| Weight kg | Dead weight | | 12070 |
| Gross vehicle weight | | 41000 |
| Front axle loading capacity | | 9000 |
| Rear axle loading capacity | | 2*16000 |
| Performance | Maximum driving speed (km/h) | | 75 |
| Maximum gradeability (%) | | 32 |
| Minimum ground clearance (mm) | | 298 |
| Fuel consumption (l/100 km) | | 38 |
| | | | |
