Detailed Description
Professio
nal class
Double sealed ball bearings
Built-in bumper guards
Adjustable to fit various sizes of flange and I-beams
Use on straight or curved track
Can be installed or removed at any point along the track

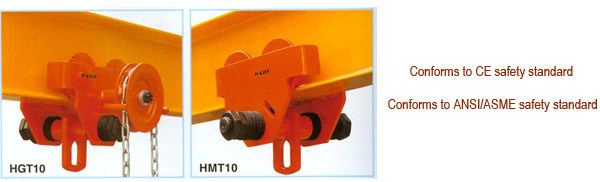

| Plain Trolleys 0.5-10ton HMT series |
Model
|
Capacity(ton)
| Beam Flange Width(b)
| DImensions(mm) |
O
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
T
|
R
|
S
|
L
|
X
|
P
|
N
|
U
|
Net weight
| (kg)
| (mm)
|
|
| ? |
|
| ? |
|
|
| ? |
|
|
|
|
|
|
| HMT05
| 500
| 64-140
| 128
| 22
| 24
| 230
| 212
| 58
| 82
| 102
| 28
| 44
| 6
| 95
| 15
| 12
| 26
| 10
| 24
| 7
| HMT10
| 1000
| 64-152
| 143
| 25
| 30
| 254
| 255
| 75
| 102
| 118
| 25
| 50
| 8
| 118
| 15
| 13.5
| 28
| 12
| 30.5
| 12
| HMT20
| 2000
| 76-165
| 172
| 27
| 36
| 294
| 302
| 90
| 122
| 137
| 27
| 60
| 10
| 145
| 20
| 16
| 34
| 14
| 36
| 22
| HMT30
| 3000
| 76-203
| 212
| 31
| 42
| 344
| 344
| 110
| 142
| 157
| 32
| 78
| 12
| 180
| 26
| 16
| 38
| 16
| 45
| 30
| HMT50
| 5000
| 88-203
| 254
| 36
| 48
| 360
| 378
| 122
| 156
| 172
| 34
| 90
| 16
| 220
| 35
| 17
| 44
| 20
| 60
| 55
| HMT100
| 10000
| 125-203
| 320
| 46
| 60
| 403
| 445
| 151
| 188
| 200
| 35
| 94
| 25
| 285
| 45
| 18
| 48
| 25
| 82
| 82
|
|
| Geared Trolleys 0.5-20ton HGT series |
Model
|
Capacity(ton)
| Beam Flange Width(b)
| DImensions(mm) |
O
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
T
|
R
|
S
|
L
|
X
|
P
|
N
|
U
| I |
Net weight
| (kg)
| (mm)
|
|
| ? |
|
| ? |
|
|
| ? |
|
|
|
|
|
|
|
| HGT05
| 500
| 64-140
| 128
| 22
| 24
| 230
| 212
| 58
| 82
| 102
| 28
| 44
| 6
| 95
| 15
| 12
| 26
| 10
| 24
| 113.5 | 14
| HGTT10
| 1000
| 64-152
| 143
| 25
| 30
| 254
| 255
| 75
| 102
| 118
| 25
| 50
| 8
| 118
| 15
| 13.5
| 28
| 12
| 30.5
| 112.5 | 19 | HGT20
| 2000
| 76-165
| 172
| 27
| 36
| 294
| 302
| 90
| 122
| 137
| 27
| 60
| 10
| 145
| 20
| 16
| 34
| 14
| 36
| 112.5 | 28 | HGT30
| 3000
| 76-203
| 212
| 31
| 42
| 344
| 344
| 110
| 142
| 157
| 32
| 78
| 12
| 180
| 26
| 16
| 38
| 16
| 45
| 135 | 40 | HGT50
| 5000
| 88-203
| 254
| 36
| 48
| 360
| 378
| 122
| 156
| 172
| 34
| 90
| 16
| 220
| 35
| 17
| 44
| 20
| 60
| 136 | 65 | HGT100
| 10000
| 125-203
| 320
| 46
| 60
| 403
| 445
| 151
| 188
| 200
| 35
| 94
| 25
| 285
| 45
| 18
| 48
| 25
| 82
| 160 | 103 | | HGT200 | 20000 | 144-203 | 385 | 68 | 60 | 475 | 642 | 200 | 274 | 300 | 55 | 94 | 30 | 302 | 70 | 37 | 60 | 35 | 110 | 151.5 | 245 |
|
Warning:
Don’t use in explosive environment
Note:
Customer’s specification or OEM is acceptable |
