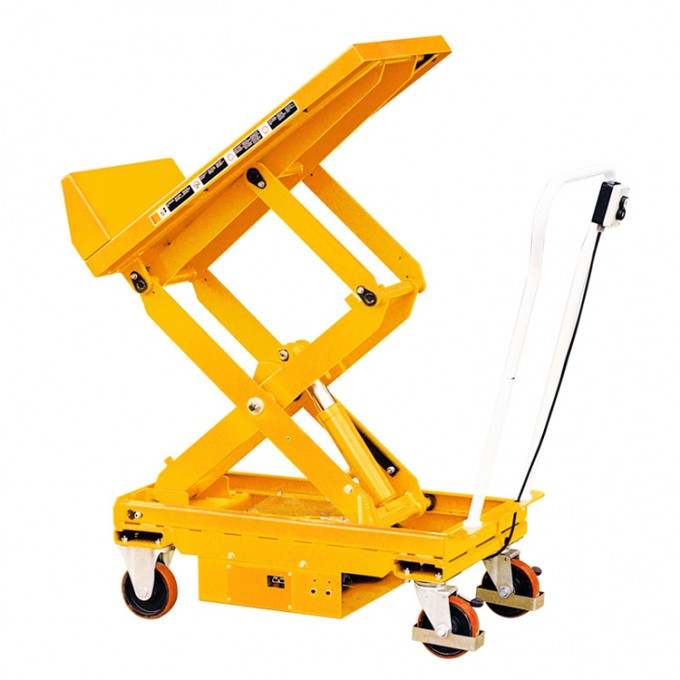

Mobile Lift & Tilt Transport Table Trolley

Manual and electric type available.
Easy to operate.

The lift & tilt table from NU-LIFT are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching.
When in its lift and tilt position, the unit holds totes or containers at a comfortable working height and angle that alloes operators to easily reach parts even at the bottom of the container.
The working table is elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it automatically tilts to an angle of 45 at full elevation. Built-in retaining lip keeps containers in place.

Model	Capacity(kg)	TableSizeL*W(mm)	TableHeight (Max./Min.) (mm)		HandleHeight H3(mm)	Overall Size B*C(mm)	Foot Pedal toMax.Height	Time to Max.Height(s)	Net Weight (kg)
			H1	H2
BL15	150	830*500	415/880	415/1400	1100	500*1010	20	--	92
BL40	400	830*520	435/900	435/1560	1130	520*1355	55	--	123
BL80	800	830*520	440/1000	438/1570	1130	520*1355	80	--	145
TS40	400	830*520	500/990	500/1620	1180	520*1185	--	20	170
TS80	800	830*520	500/1000	500/1620	1180	520*1260	--	20	185
