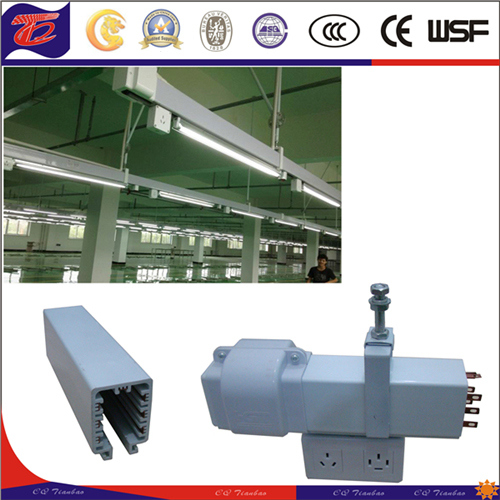

Electrical Lighting Trolley Bus Duct System

Electrical Lighting Trolley Bus Duct System

Characteristic:

Adopting high quality PVC material as housing and electrolytic copper bar as conductor, high impedance and insulativity. Can be used the garment factory and labor intensive site, cost effective, neat and orderly.

Specifications:

1. Rated current: 25A ~80A
2. Rated Voltage: 380V
3. Conductor material: copper bar
4. Conductor qty: 2~7
5. Housing: PVC
6. Standard Length: 4m

Application areas:

Electronic manufacturing lines
Sewing machines lines
Automobile assembly lines
Machine manufacturing line
Commercial production & assembly lines
Machine shop and factories machine power supply
Clean room power supply
Work stations power supply
Factories, warehouse, parking area lighting
School, R&D Lab. power supply
Shopping mall, Shop, Commercial/retail lighting
Commication &computer center power supply
Office power supply & lighting
Museum, Art museum & exhibition center lighting
Other power supply

Catalogue:

S/N	ModelNo.	Weight(kg/m)	Remark
1	GHG-7-30	3.4	7p-30
2	GHG-7-30/50	3.6	2p-30;5p-50
3	GHG-7-30/80	4.0	2p-30;5p-80

Main components:

1.Joint Bar	7.Light Switch
2.Joint Bolts	8. Fix Rod (support)
3. Hanger	9.Hanger Rod (support)
4.End Cap	10. Lamp
5. End feed	11. Lamp Clip
6. Socket	12. Bust Proof Cover

Other bus bar system we can supply:
Aluminum shell lighting bus bar
Sandwich bus bar
Air insulated bus bar
Cutting bus bar
