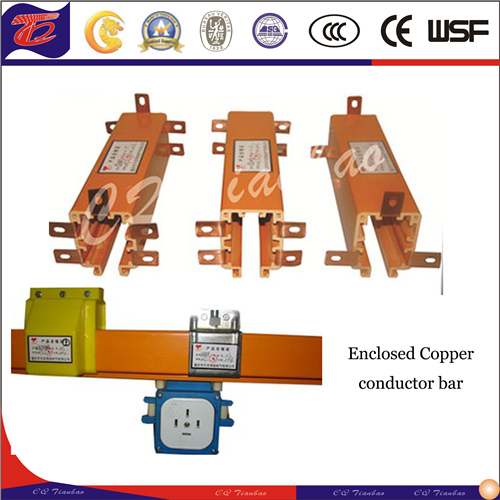

Crane Conductor Bar System Enclosed Power Rail Trolley

*Advantages& Features

-Compact design, save space, easy to install and maintenance
-Stable performence and high conductivity.
-Flexible, Insulated and Safety
- With Aluminum alloy protection, corrosion resisting and long life.

*Specifications

-Number of poles:3, 4, 5
-Rated Current:50A, 80A, 120A, 140A, 210A
-Conductor material:Electrolytic copper
-Standard length:4m

*Technical parameters

S/N	Type	ModelNo.	NumberOfPole	CrossSection(mm)	RatedCurrent
1	HXTS-4-10/50	68TS57410	4	10	50
2	HXTS-3-10/50	68TS57310	3	10	50
3	HXTS-4-16/80	68TS57416	4	16	80
4	HXTS-3-20/100	68TS57320	3	20	100
5	HXTS-4-35/140	68TS57435	4	35	140
6	HXTS-3-50/170	68TS64350	3	50	170
7	HXTS-4-50/170	68TS64450	4	50	170
8	HXTS-4-25/120	68TS57425	4	25	120
9	HXTS-4-70/210	68TS64470	4	70	210
10	HXTS-3-10/50	68TS57310	3	10	50
11	HXTS-3-95/300	68TS75395	3	95	300
12	HXTL-4-16/80	68TL66416	4	16	80
13	HXTL-5-10/50	68TL66510	5	10	50
14	HXTL-3-10/50	68TL66310	3	10	50
15	HXTL-3-20/100	68TL66320	3	20	100
16	HXTL-4-20/100	68TL66420	4	20	100
17	HXTL-4-35/140	68TL66435	4	35	140
18	HXTL-3-50/170	68TL66350	3	50	170
19	HXTL-4-50/170	68TL66450	4	50	170
20	HXTL-4-10/50	68TL66410	4	10	50
21	HXTL-4-70/210	68TL66470	4	70	210
22	HXTL-3-25/120	68TL66325	3	25	120
23	HXTL-3-95/300	68TL66395	3	95	300

*Accessories

1.Conductorrail:4m/piece
2.EndFeeder:onepieceforoneline
3.SlidingHanger:Max.distance1.3m
4.FixingSupport:Max.distance1.3m
5.LineFeed/Middle Feeder:onepieceeachline
6.HangerClamp:Max.distance1.3m
7.JointCover:onepieceeach4m
8.EndCap:pieceoneline
9.CurrentCollector
10.Currentcollectorholder/Tow Arm

*Application range



If you are any needs or other qustions ,please contact us freely
