Stainless Steel Crane Cable Trolleys

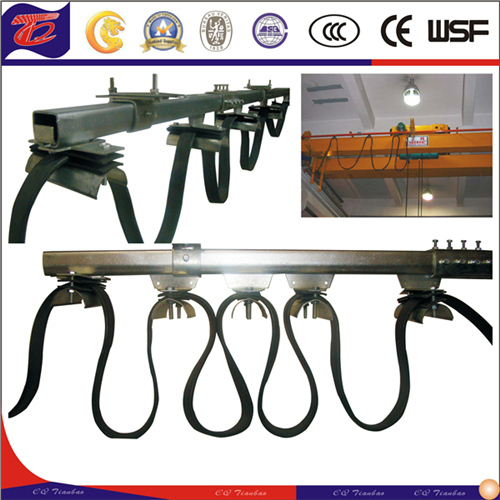

The HXDL components: cable track (cable rail), trolley, flat cable, hanging bracket, coupling, top and end device.
The festoon system is widely applied to the mobile device power transmission system in the filed of Tobacco machinery,
railway good yard and the port, etc.

Technique parameter:

1 Material: cold-rolling galvanized steel or stainless steel
2 Ambient temperature: -35ºC-90ºC
3 Trolley movement speed: V<120m/min
4 Trolley service life: 32000H




Components:

1. Crail
The trolley moving in the Crail
Include straight track abd curved section with Rmore than 500mm.
The length for the straight section is 4m.
It is extended with the coupling.

Model No.	A	B	C	D
HXDL-30	33	40	14	2
HXDL-40	40	40	14	2.5
HXDL-50	50	50	16	2.5
HXDL-60	63	63	18	4.5
HXDL-70	72	68	22	4.5
HXDL-100	100	100	35	5

2. Cable trolley

Towing trolley
The towing trolley, it drives the middle trolley move along the track.
Four fully enclosed ball bearings, flexible,applied to the dense dust occasion.

Model No.	A	L	H	R
HXDL-301	116	130	20	27
HXDL-401	116	130	20	27
HXDL-501	200	188	25	37
HXDL-601	200	188	30	37
HXDL-701	165	190	30	50
HXDL-1001	310	206	60	100

Middle trolley

Wheel: fully enclosed ball bearing
Cable clamp: curved soft rubber cushion
The bumper is installed in case of impact.

Model No.	A	L	H	R
HXDL-302	55	106	25	27
HXDL-402	55	106	25	27
HXDL-502	84	128	25	37
HXDL-602	94	158	30	37
HXDL-702	160	190	30	50
HXDL-1002	260	206	60	100

3.Coupling

Cold-rolled steel sheet.
Bolting locking.
Extending the track.

Model No.	A	B	C
HXDL-303	38	48	20
HXDL-403	50	50	20
HXDL-503	60	60	22
HXDL-603	73	73	20
HXDL-703	88	88	27
HXDL-1003	114	114	45

4. Hanger bracket
Bolt locking.

Model No.	A	B	C	L
HXDL-304	38	48	20	80
HXDL-404	50	50	20	80
HXDL-504	60	60	22	85
HXDL-604	73	73	20	130
HXDL-704	88	88	27	140
HXDL-1004	114	114	45	170

5. Top and end device
Top device
Be installed at the top of the track to fix the cable.
Cable is connected to the power supply box and cable trolley.

Model No.	L	H	R
HXDL-305	90	25	27
HXDL-405	90	25	27
HXDL-505	90	25	37
HXDL-605	100	30	37
HXDL-705	120	30	50
HXDL-1005	230	60	100

End device
Prevent the trolley slide out of the track.

Model No.	L	B	C
HXDL-30	90	40	20
HXDL-40	90	40	20
HXDL-50	100	40	30
HXDL-60	100	50	30
HXDL-70	120	50	60
HXDL-100	230	85	80

6.Tow arm
Fix the top trolley and the middle device.


Application



Configuration of cable trolley and accessories:

Hanger: every 2meter
Middle cable trolley: every 2meters
Coupling: same with the track numbers
Top trolley: every line one set
Two arm: one piece each line
Top and end device: one set each line
Steel rop: L=1.2xtrack length +length of trolley stored +length to power source.

Order notice:

1. Track length:____meter
2. Cable length:____meter
3. Quantity of trolley:____pcs (2m ~4m with atrolley)
4. Quantity of coupling joints:___pcs (A joint is required when the guide rail is longer than 4m or 6m)
5. Others parts will be list in our quotation.
