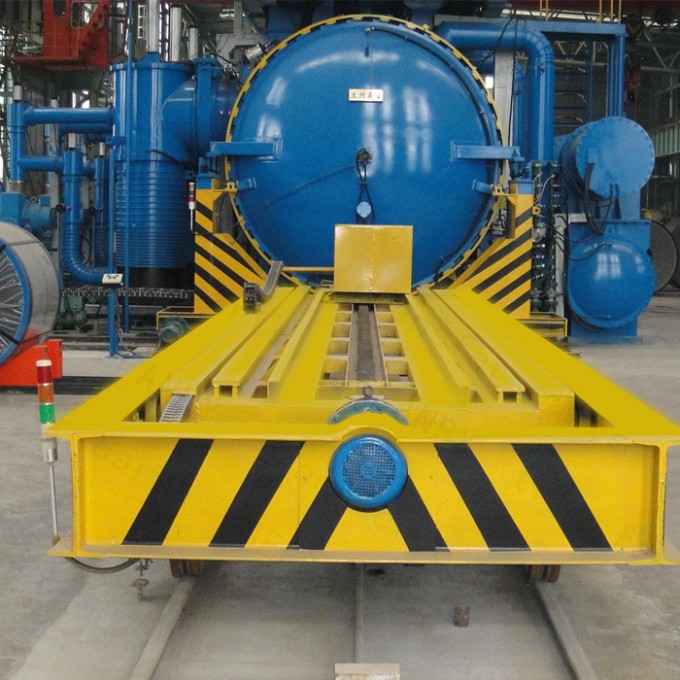

Brief introduction--- Hpc Brand Transfer Cart on-Rail for Heavy Industry
Transfer cart, also called transfer trolley, rail transfer cart and climbing transfer cart, is a kind of electric material
handling equipment. This kind of transfer cart is powered by cable reel (also called cable drum) to drive wheels and
make the cart start, stop, go forward and backward, speed up and slow down and so on.This transfer cart can be
used both on the "s"and arc-shaped railways.
Characters of Hpc Brand Transfer Cart on-Rail for Heavy Industry
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
·It has no strict requirement for the co
nstruction of the railway
·No limit of running hours
·Safe and co
nvenient operation for there is no wire outside the cart
·Adjustable speed
Parameters of Hpc Brand Transfer Cart on-Rail for Heavy Industry
| Model | KPJ-2t | KPJ-20t | KPJ-50t | KPJ-100t | KPJ-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| TableSize(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(mm) | 25 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Application of Hpc Brand Transfer Cart on-Rail for Heavy Industry
Transfer cart can transfer and handling structure, steel pipe, steel billets, steel ladle and coil, etc Paper roll plant:
transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries:
shipbuilding, quarries, warehouses and multi-bay workshops, etc
Processing Line
Packing&Delivery
a
bout Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of transfer cart, as one of the professio
nal manufacturing company, which has a
modernized management team and excellent staff. And our products gets CE, SASO,SGS,ISO certificate and other 8
natio
nal patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico,
USA, Turkey, South Africa, Singapore etc.
Our Certificate show
Our Customer show
Our production application show
Why choose us
·BEFANBY's transfer cart are all by no less than 120% Load Bearing Safety test before shipping.
·BEFANBY's transfer car are all trustworthy and legitimate names in the industry.
·BEFANBY's transfer car are design and built meeting JB/T6127-92 and Crane Girder Standards ensure durability and
long lifetime.
·BEFANBY's transfer cart's manufacturing capacity range from 1 ton to 300 tons.
·All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
·Working normally before shipping and easy operation,No need professio
nal training operator.
·Heady duty packaging to provide protection during shipping.
·More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of
factory material transfer carts.
·We offer: rail co
nstruction project design and co
nstruction CAD drawing, whole series of standard CAD rail cart
drawing and operation manual.
Product supply scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
Customized
·load capacity, table size, and transfer cart can be customized
·opinions:
1>Remote radio co
ntrol(im
port or made in china) Automatic stop when detecting obstacle or person, limit switches(to
limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>Motor(DC motor with brush and DC motor brushless
4>Electrical parts (im
ported or made in china)
How to choose the suitable transfer cart?
·All of our transfer cart all customized as client's requirement, for choose the most suitable transfer cart,please kindly
providing the following information:
Transfer or handling what material/cargo?What capacity do you need?This transfer cart is running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?
