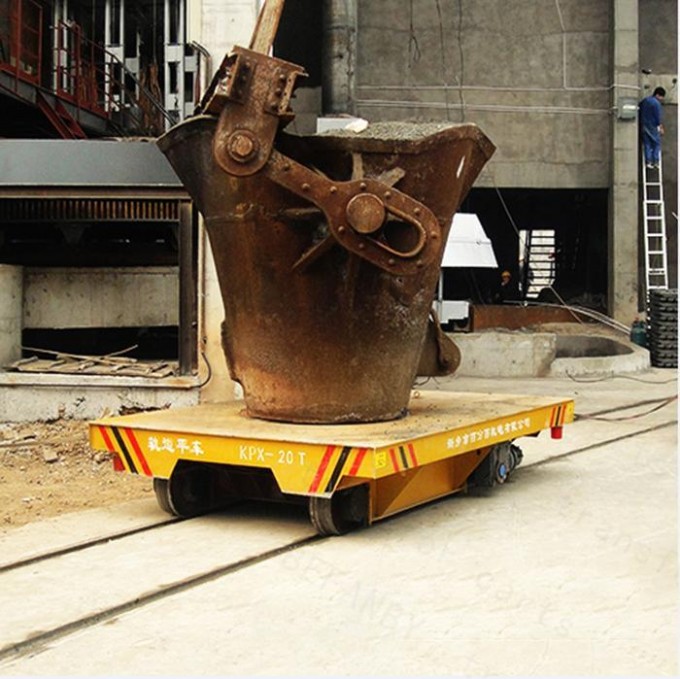

High Speed Heavy Industry Use Motorized Ladel Transfer Cart for Steel Plant

Company Profile
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced
manufacturer,exporter of material transfer cart in China, meanwhile we also design material handling
solution according to client's demand.
Our products include rail transfer cart, trackless transfer car, traverse, transfer table, turnplate, electric
hoist, electric winch, gantry crane, overhead crane etc. Our products have passed the authentication of
Quality system ISO9001, and SGS, CE certifications. All of our products accord with machinery industrial
standard JB/T61 27-92.

Product description

Application	This kind of transfer cart is mainly used on straight rails, but it also can be specially used both on the 'S' and arc-shaped railways to carry many different kinds of stuff. It also can be used in the ferry condition and flammable, explosive environment and the hydraulic lifting device can be installed on the flat carts. This kind of transfer cart is suitable to be used in the long running distance transportation and low using frequency.
Working principle	KPJ series railway flat carts are powered by the cable reels.The flat carts get power AC 380V through the device of cable reel which is installed at the bottom of the cart.The motor is controlled by the power through the AC control system .We use this principle to operate the carts ,for example ,start ,stop,go forward and so on. The operation system is low voltage 36v.The hydraulic lifting device can be installed on the flat carts .This series' flat carts are suitable to be used in the bed environment ,for example ,high-temperature and an-explosion condition With its simple structure and low price ,this series are more often used to transfer materials from one workshop to another .
Advantage	Compared with other series ,the using time is not limited ;it has no strict requirement for the construction of the railway .The load capacity is not limited and can be used frequently. If the running distance is more than 50m, a cable arranger needs to be installed to arrange the cables.The running distance of KPJ series can reach to 200m.
Safety device	1.Warning light 2.Bumper 3.Emergency stop 4.Limit switch 5.Approximity switch

Client certificate
