Kpd-16 T Motorized Transfer Trolley for Transporting

KPD-16 T Motorized Transfer Trolley for Transporting

Brief IntroductionKPD series' motorized transfer trolley is powered by low voltage electricity from railways, the kind of transfer trolley is
one of the most convenient and it often can be widely used in the industry field an so on. Of course,compaired other
transfer trolley, its main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the
ground, so doesn't others.it is the advantage that the flat cart have, why we disign is that its convenient (only rails
needed) and its simple operation. about us, Our company have professional team and utilize more advanced technique
to make it , and it has been a long year to manufacture it attentively.Simutaneously,it will be more easy and flexible.

Working Principle

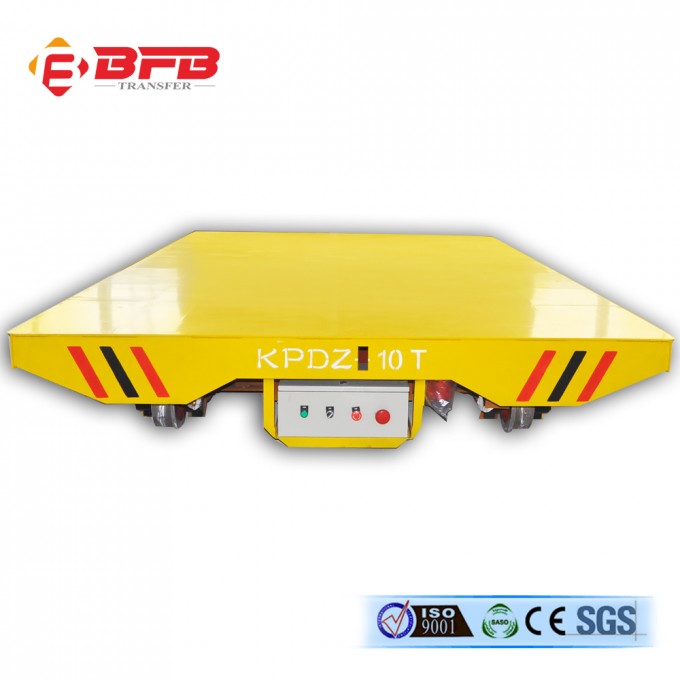

KPDZ motorized transfer trolley, the power source AC380v is transformed into AC36v two-phase and are respectively
connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the
bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC
ontrol system to make the flat carts start, stop, go forward and backward railways.

Feature

• Anti-high temperature
• Safe devices are installed
• Customization can be supported
• Apply to various occasions
• safety, flexibility, stable start, big starting torque, small capacity to the gear gearing
• Low voltage, long lifetime
• The running distance is not limited.
• when the running distance is more than 70m, it is better to increase the transformers to make up for the voltage
• which as been lowed.

  Technique Parameter


  Type KPD-16T Rated Load(T) 16 Table Size(mm) 40002200600 Speed(m/min) 30 Wheel Tread(mm) 2200 Wheel Diameter(mm) 350 Bottom-Clearance(mm) 50 Min.Tuting Radius(mm) 35 Rail Guage(mm) 1435 Motor Power(kw) 3.5 Rail Code P24 Wheel Quality 4 Structure Steel Box and Girder Max. Truing Load 4.87



  Brief Introduction----BEFANBY
  Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation
  and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company,
  which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and
  other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany,
  Mexico, USA, Turkey, South Africa, Singapore etc.
  Why choose us

  Production Supply Scope


  Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
  Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
  Battery Powered Transfer Car	KPX	Battery		Using frequency
  Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
  Busbar Powered Handling Cart	KPC	Busbar		Working shop
  Towed Rail Trailer	KP	Tractor	1-100t	Working shop
  Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
  Trackless Handling Machine	BWP	Battery		Working path

  Our After Service
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 16 hours engineering service and 24 hours internet service for our customers
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace
  • relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and
  • Preserve the image of our company.
    How to choose suitable transfer trolley?
    All of our transfer trolleys all customized as client's requirement, for choose the most suitable transfer trolley,please
    kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This trasnfer trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?
