Anti-Explosion Rail Trolley Powered by Battery for Spray Room

Anti-Explosion Rail Trolley Powered By Battery For Spray Room

Company information:

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional manufacturer of rail transfer car with more than 15 years' experience.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.



Product information:

Advantages

Safety
flexibility
stable start
big starting torque
Low voltage
long lifetime



Export markets
Our products are sold in India, Britain, American, and South East Asia and well appciated by their purchasers. Because our products complete range of articles and modern techniques, We have won praise form customers.

Working Principle

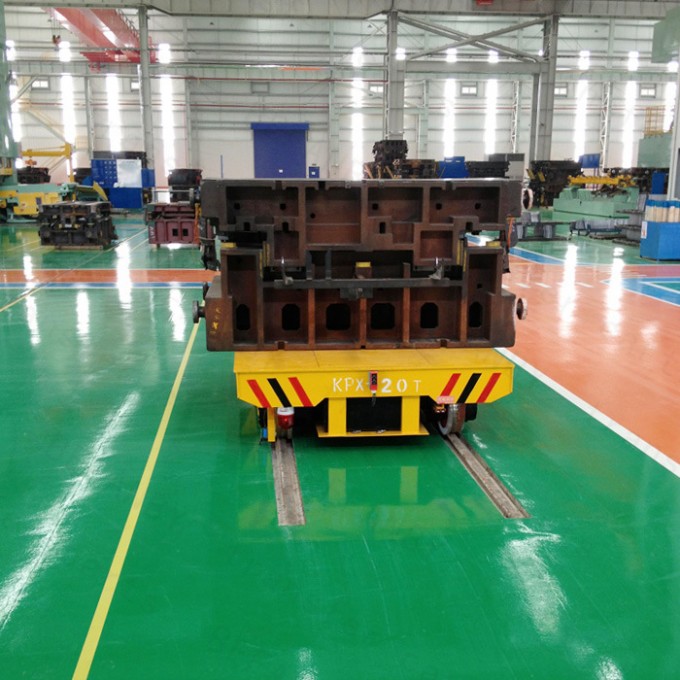

KPX series' rail trolley is battery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.



Attentions

1. This series have strict requirement on the construction of the railways which need to be insulated. The rated load can not be more than 50T.

2. When running distance is more than 70m, you need to increase the transformers to make up the voltage which has been lowered.

Technical Perameter

Type	KPX-25T
Rated load(t)	25
Table size(mm)	4500' 2200' 600
Speed(m/min)	30
Wheel tread(mm)	3600
Wheel diameter(mm)	400
Bottom-clearance(mm)	50
Min. turning radius	60
Rail gauge(mm)	1435
Storage battery	YZ160M1-6
Rail code	p24
Wheel quality	4
Structure	Box and girder
Max. wheel load(kn)	77.7

Our Customer



Our Certificate



Production Supply Scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

After-sale service

In the warranty period, if our product has any problem or can't work normally, we can support you repair technology or replace relevant parts for you.

According to the user's actual condition, design the auxiliary device or foundation drawing for free, and offer the technical service and drawing material. Guide the customer to install and debugging of the trolley until making customer satisfied.
