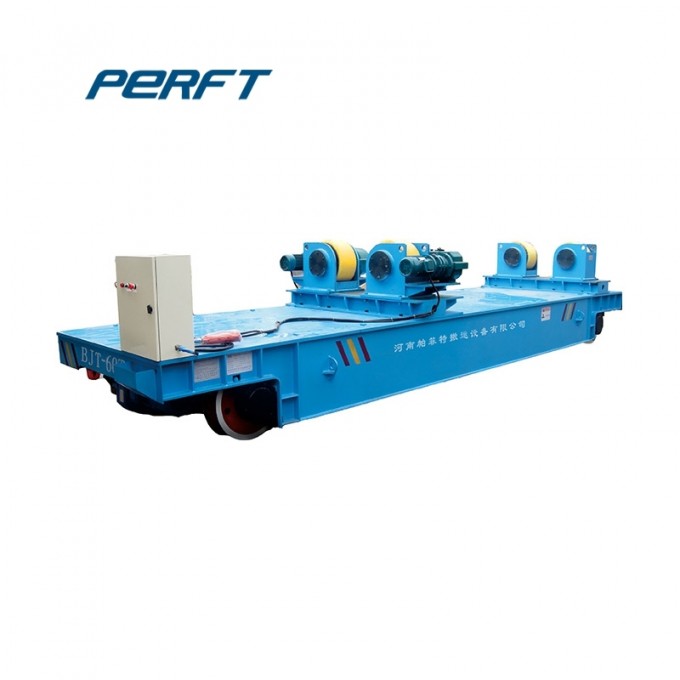

Flexibly Turning Motorized Transfer CartIntroduction of Flexible Turning Transfer CartIt can avoid the vehicle from damaging and shortening using time. Whenthe cart is working, it must be steadilytravel, steadilystart and slowly stop. This cart is powered by cable. The power source 360V alternating current is transported to the traction motor by cable. The center electric co
ntrol system make the vehicle to start, stop, move forward and move backward. The voltage is safe 36V. Cable is collected and released by coiling device mounted underneath the car. It's cost-saving and long-distance running and doesn't need special rail requests.
Details ofFlexible Turning Transfer Cart
CustomizationofFlexible Turning Transfer Cart─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
Application ofFlexible Turning Transfer CartWe have a wide range of flexible turning transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: me
tallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, me
talworking, warehouse and so on. We can provide the product you want and have a long term cooperation with you!
Parameter ofFlexible Turning Transfer Cart| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Running Speed(m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Packing and ShippingThe bodyof the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would becarefully fixed andtransported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Co
ntainer and so on.
Sales Service Of Our Company
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
