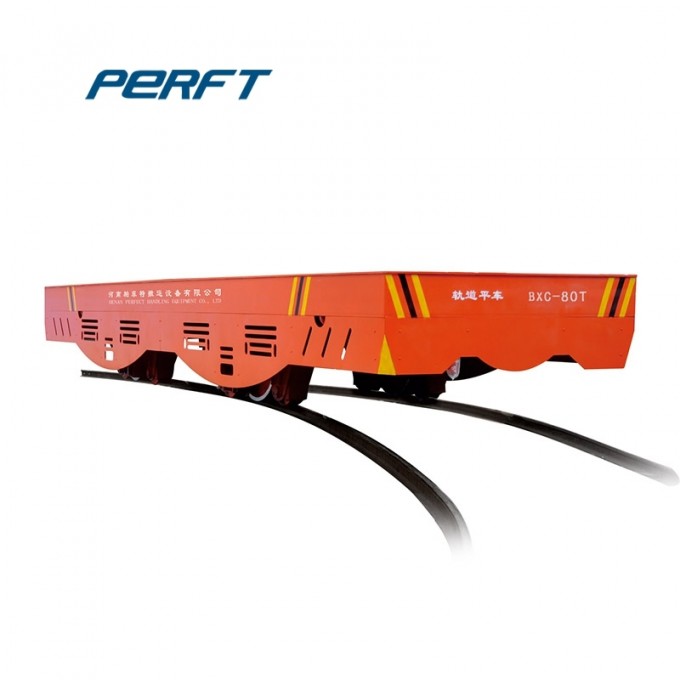

S Shape Rail Transport Cart Automated Operated Handling Trolley

S Shape Rail Transport Cart Automated Operated Handling Trolley1. Introduction of Automated Handling TrolleyTransfer cart is a kind of material handling car which is mounted on the rail or operated freely on cement floor directly. In the modern factory, the transfer car is widely used for transfer all kinds ofraw materials bay to bay.Transfer Cars that are most suitable to transfer large machinery or material from one part of the plant to another part are specially designed by our expert team. Transfer carts are self propelled Interbay transfer car. With vast experience and knowledge we are involved in offering a pmium quality range of factortries, building sites, seaport, heavy industries andexperimentalprojects usingtransfer cars. These offered transfer cars are manufactured using fine quality material and advanced technology to meet the variegated pferences of our clients. These are highly praised among our clients due to their superior quality, durability and competitive prices.

2. Application ofAutomated Handling Trolley
PERFECT heavy duty material transfer trailersare operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cartin the world for moving raw material or facilities inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either oneor different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.



3. Parameter of Automated Handling Trolley

BXC SERIES TRANSFER CART TECHNICAL PARAMETER TABLE
Model		KPX-2t	KPX-5t	KPX-10t	KPX-16t	KPX-20t	KPX-25t	KPX-30t	KPX-40t	KPX-50t	KPX-63t	KPX-80t	KPX-100t	KPX-150t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size(mm)	Length( L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width( W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Heigth( H)	450	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter(mm)		Ф270	Ф300	Ф300	Ф350	Ф350	Ф400	Ф400	Ф500	Ф500	Ф600	Ф600	Ф600	Ф600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(Kw)		1	1.2	1.6	2	2.2	3	3.5	4	5	6.3	8	10	15
Battery Capacity(Ah)		180	180	160	180	180	250	250	300	330	400	400	440	600
Battery Voltage(V)		24	36	48	48	48	48	48	48	48	48	72	72	72
Running Time When Full Load		4.32	5.4	4.8	4.3	4	4	3.5	3.6	3.3	3	3.6	3.2	2.9
Running Distance for One Charge(Km)		6.5	8.1	7.2	5.1	4.8	4.8	4.2	4.3	4	3.6	4.3	3.8	3.2
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference Weight(t)		2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100
Notes.1.Load capacity, table size and rail gauge can be customized. 2.Options: a.Remote radio control(imported or made in China);b. Automatic stop when detecting obstacle or person, limit switches(to limit travel);c.Battery type( Free of maintenance Battery,lithium battery,explosion-proof battery,and anti- high temperature battery; d motor(DC motor with brush and DC motor brushless ; e.Electrical parts(imported or made in China)

4. Company and Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can ppare them to be used in rails, with autonomous batteries or for special applications.


5.Other Products We Offer

6.Customization of Automated Handling Trolley
Δ The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
Δ 1Ton to 300 Ton capacity range
Δ Push and Pull operation or completely motorized
Δ Full steer-abilityor controlled direction of motion
Δ Customshaped table size to suit yourapplication
Δ Lifting fixtures available for simple transportation
Δ Fully automated controls, wireless control system, or a fixed pendant

7. Q&A
1. What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
2. What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
3. How can Transfer Carts be customized?
Please tell us:
Whatload or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
