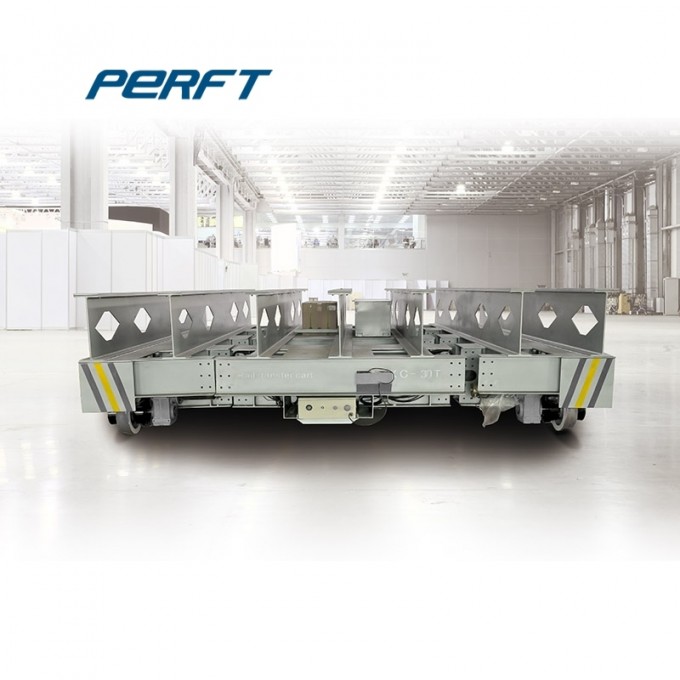

Industry Motorized Transport Vehicle Transfer Cart Rail Transfer Trolley

Industry engineering motorized transport vehicle cart rail transfer trolley
Introduction:
BDG series rail powered transfer cart get its power from railway. The 380V alternating-current is transformed into safe current 36V and connecting respectively with two rails. The current collectors mounted on trolley get the 36V current from the railway and transmit it into electronic box and thus to make the car start, stop, move forward,adjust speed and move backward.


Advantage:
1)The BDG series transfer cart can be applied in such as S shape ,Arc shape,and high temperature etc. occasions.
2)It is safeto operat because of the insulated rail.
3)Flexibility,high using frequency,long using time,long service time ,no limitation of running distance etc.



Applicationof Rail Transfer TrolleyHenan Perfect Handling Equipment Co., Ltd'ssteel frame trolley canmeet the needs of all major industries including Automotive, Basic metals, Heavy Manufacturing, Rigging, Stamping, and many other fields.
Our "light-duty" steel frame trailers are ideal for warehousing, light manufacturing and automotive assembly plants. It's load capacity ranges from 1 to 4 ton.
Our "medium-duty" steel frame trailers are a proven Flat Transfer Trailerused for a wide range of applications and all industries. The majority of the units manufactured range in capacity from 5 Ton to 50 Ton.
Our "heavy-duty"steel frame trailers are designed for handling the large and heavy loads found in the steel, automotive and heavy manufacturing industries. It's load capacity ranges from 50 ton to 300 ton.



Parameter of RailTrack Trolley

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Impacted rated load(t)	5	20	30	40	50
Structure of frame	Steel plates welded, beam
thickness of the steel plate	8	14	14	16	16
Cart weight(t)	4.3	7.9	8.8	10	10.5
Max. wheel load (t)	2.8	5.6	7.7	10	12
Ground requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table size (mm)	3000*2000	4500*2200	5000*2200	5500*2300	6000*2300
Height of the whole cart (mm)	450	600	650	700	700
Wheel base (mm)	1500	1700	1700	1800	1800
Axles distance (mm)	2500	3900	4300	4800	5200
Turning radius (mm)	2501	3901	4301	4801	5201
Turning type	Turning while driving with no stop
Control method for turning	Control button
Turning structure	Mechanical
Motor power (KW)	3.5	7	10	12	15
Wheel diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel material	ZG55+hydropurture
Running speed (m/min)	0-15			0-12
Brake principle	Electric magnetic brake
Ground balance	mechanical automatic adjustment
Operation method	With wire or no wire
Battery model	D-250 24pieces	D-440 24pieces	D-250 36pieces	D-330 36pieces	D-440 36pieces
Charger's installation	Installed on cart			Split-type
Cart color	Yellow and warning sign
Radar control	3-0.3 m, Automatic stop for obstacles
Other functions	Turning light, night light and power display

Our company & Factory visit
It's our great honor to introduce Henan Perfect Handling Equipment Co., Ltd.We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold inChina, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc.We are becoming more and more popular around the world and get high evaluations from our cooperators.



After sales service
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 2 years, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price from you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality and best service for you all the way!



Other pruducts
We are a professional company and produce many different series of steel frame trailers, coil transfer carts, battery powered carts, cranes and many other different kinds of products. If you need special type, customization is also accepted. According to your demands, we can assure that you will be satisfied with our product and service.
