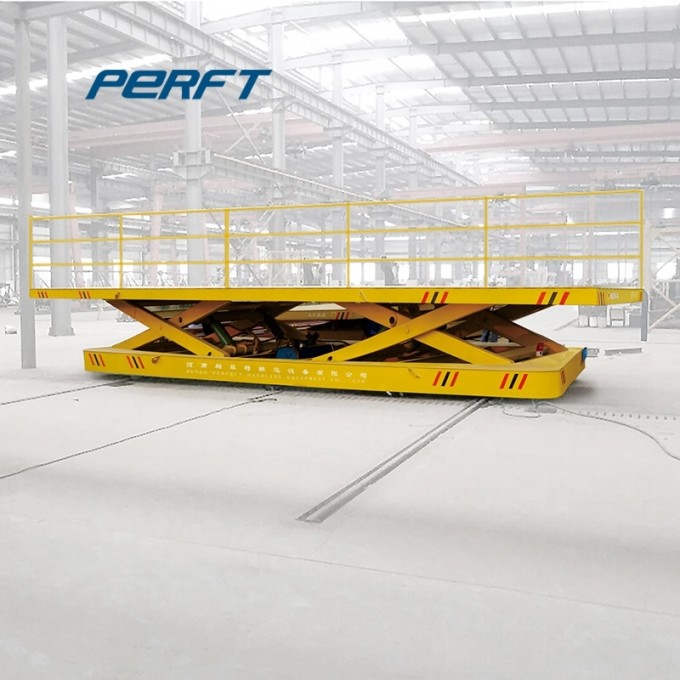

Steel Beam Transfer Trolley with Hydraulic Lifting Table

Steel Beam Transfer Trolley with Hydraulic Lifting Table
Introduction of Transfer Trolley with Lifting TableOur transfer trolley with lifting tableis widely used in the processing line of punching, pouring, cold heading, extrusion, powder metallurgy parts pssing, pssure casting, and engineering plastics, rubber, ceramics and other products of the compssion molding or injectionmolding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table etc.

Application ofTransfer Trolley with Lifting Table
PERFECT heavy die transfer trailersare operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cartin the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either oneor different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.




Parameter ofTransfer Trolley with Lifting Table

Model	BWP-5t		BWP-20t		BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5		20		30	40	50
Ground requirement	Cement floor or Steel plate ground
Table size (mm)	3000*2000		4500*2200		5000*2200	5500*2300	6000*2300
Height of the whole cart (mm)	450		600		650	700	700
Wheel base (mm)	1500		1700		1700	1800	1800
Axles distance (mm)	2500		3900		4300	4800	5200
Turning radius (mm)	2501		3901		4301	4801	5201
Turning type	Turning while driving with no stop
Motor power (KW)	3.5	7		10		12	15
Wheel diameter (mm)	300 (4)	400 (4)		400 (6)		500 (6)	500 (6)
Wheel material	ZG55+hydropurture
Running speed (m/min)	0-15					0-12
Brake principle	Electric magnetic brake
Operation method	With wire or no wire
Charger's installation	Installed on cart					Split-type
Charger's function	Automatic stop for obstacles
Radar control	3-0.3 m, Automatic stop for obstacles
Warning equipment	Sound and light
Other functions	Turning light, night light and power display

Company and Customers' Visit
We have been specializing in the Design and Manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can ppare them to be used in rails, with autonomous batteries or for special applications.


Other Products


Customization
Mechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
