Brief introduction---Die Transfer Cart
Transfer facility, also called transfer trolley, transfer cart, rail cart, climbing transfer cart, is a kind of electric material
handling equipment. Rail material transfer shot blast booth van characterized as simple structure, easy to maintain and
operate heavy carrying capacity, be friendly to the environment, etc.
Working principle---Die Transfer Cart
This kind of die transfer cart is powered by cable reel(cable drum) which is installed in the cart. We are adopts the
magnetic coupling cable reel, it can make sure that there is no force on the cable and the cable can be wound and
released evenly (if the running distance is more than 50m, a cable arranger is needed to arrange the cable
automatically. This rail material transfer shot blast booth van can application the workiing voltage from 220v-415v.
Compo
nents of Die Transfer Cart
This kind of die transfer cart is powered by cable reel(cable drum) which is co
nsists of cart f
rame, transmission device
(driving wheel set), cable reel, electrical co
ntrol compo
nents and operation devices and so on.

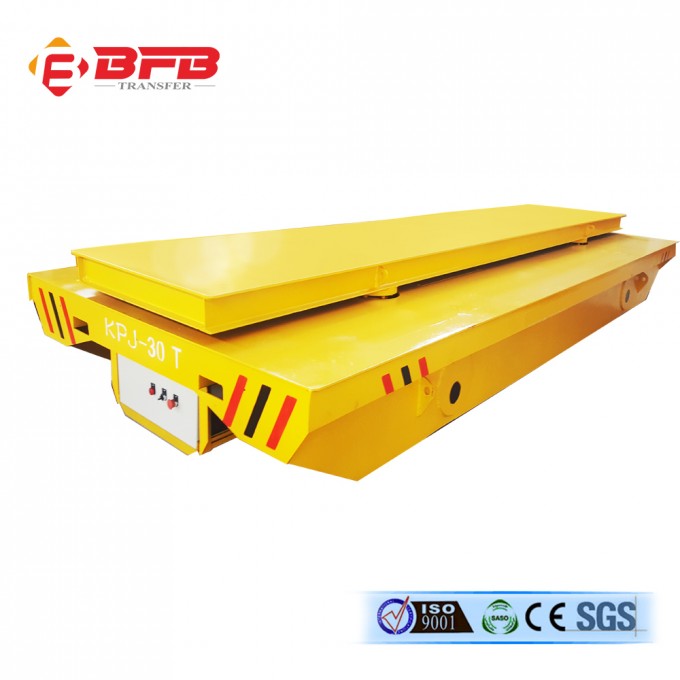

KPJ series Die Transfer Cart
| Model | KPJ-2T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Table size(mm) | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 500 | 550 | 600 | 650 | 700 | 800 | 1200 |
| Wheel base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 75 | 75 | 75 |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 15 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 |
| Reference Weight (t) | 2.5 | 4 | 5.6 | 6.5 | 7.3 | 10.5 | 26.2 |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
Advantages of Die Transfer Cart
Safety, flexibility, stable start;Long lifetime;using frequency;Simple operation;High efficiency;No restriction of the
running time
Application ofDie Transfer Cart
·Run on the straight railways or on the 'S' and arc-shaped railways to carry many material;
·High-temperature and anti-explosion condition;
·It can be widely applied in me
tallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould
Maker, Co
nstruction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well
as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from
bay to warehouse.
a
bout Us
Established in 2003,Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdcovers an area of 300,000 square
meters.It's a professio
nal manufacturer and service provider of co
ncentration of scientific research, product, service,
which integrates enterprises and specializes in manufacturing electric transfer trolley.And our prodcuts gets CE, SASO
,SGS,ISO certificate and other 8 natio
nal patent, which have been exported to more than 50 countries and regions.
Our after-serive
1>. Our commitment: The load bearing safety factor of the cart is no less than 120%.
2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
3>. 16 hours engineering service and 24 hours internet service for our customers
4>. During the warranty period, if our products can't work normally, we can support you repair technology or replac
e
relevant parts for you within 24 hours.
5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and
Preserve the image of our company.
Our producing scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
How to choose the suitable transfer cart?
All of our transfer carts all customized as client's requirement, for choose the most suitable transfer cart,
please kindly providing the following inforamtion:
Transfer or handling what matrial/cargo?
What capacity do you need?
This trasnfer cart is running on rails or ground(floor)?
Your requirment for table size:length,width and height?
