Heavy Load Electric Ladle Handling Cart

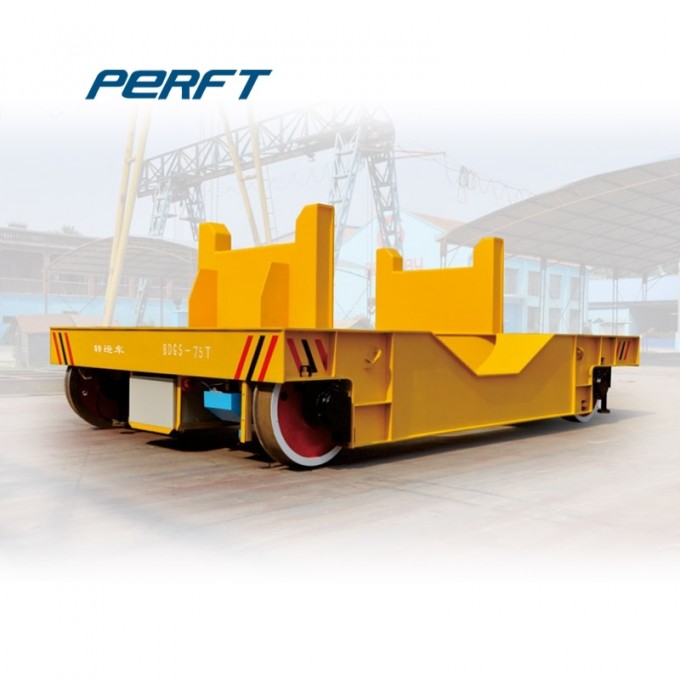

Heavy load electric ladle handling cart
Introduction ofLadle Handling Cart
PERFECT Ladle Handling Cart are extensively used for moving and transporting hot metal ladles to the ingot casting machines or within the plant itself. These are well known for their capacity to bear enormous weight easily and equipped with two driving mechanism to keeping working when one is damaged by ladle high temperature.Our transfer cars are easily maneuverable and heavily demanded by organizations engaged in conducting metallurgical operations.

Application ofLadle Handling CartWith the functions of steady traveling, stepless speed regulation, the ladle rail transfer trolleyis commonly applied to transfer steel ladle, molten and liquid steel, aluminum ladle,furnace clinker, steel slag etc. These ladle carts usually are used tocarry molten steel before the furnace, electric stove or converter in steel mill,foundrywork,metallurgy industry, and casting factory.
Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the Ladle Handling Cart should be designed with heat exposure proof device, especiallyto the battery, motor, reducer and electric appliance. If need, we would ppare two motors, so when one is damaged by the ladle 's high temperature the other one could work continually.


Parameter ofLadle Handling Cart

Model		BJT-2t	BJT-20t	BJT-50t	BJT-100t	BJT-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	500	600	700	1000	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Recommended Rail Model		P15	P24	P43	QU100	QU100

Other Products


Our Factory and Customer VisitHenan Perfect Handling Equipment Co., Ltd. is a professional designerof material handling equpment to meet the specific requirements of each client.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. Our special solution to the design of each product includes a detailed review of the client requirements, which is used to develop the Functional Specification of the product. Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.


Packaging & Shipping


Q & A
How are the transfer trolleypowered?
Powered AC carts have power cable connected directly to an electrical panel, typically for carts that travel along a fixed path. Cable reels can be installed for cable management.
Powered DC carts have on-board batteries that have an average running time of 16 hours. DC battery charging units can be installed on-board for convenience. Extended battery life can be accomplished by having four batteries rather than two.

How fast can the transfer carttravel?
Typically, carts come with drive motor speed of 50 fpm (with brake). Optional consideration can be given to ordering VFD (electric car only) for soft start/stop movement. Faster travel speeds can be ordered.

How to protect the transfer trolley as the temperature of ladle is so high?
The materials, driving system and electrical control of the car would be specially designed. The heat insulating material is used in the car to resist the high temperature.
