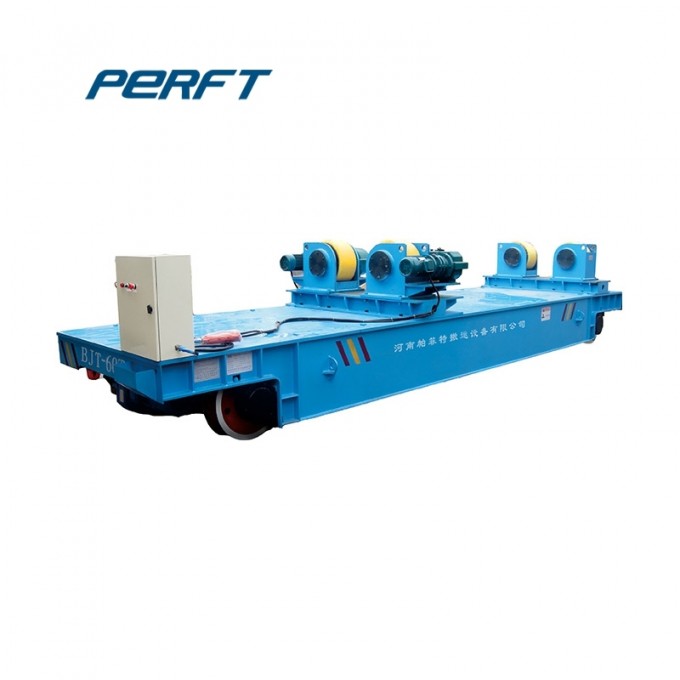

20 Ton Cable Reel Drum Steel Beam Transport Cart

20 ton Cable Reel Drum Steel Beam Transport Cart

Introduction of Cable Drum Transport Cart
This cable drum transport cartis powered by cable. The power source 360V alternating current is transported to the traction motor by cable. The center electric control system make the vehicle to start, stop, move forward and move backward. The voltage is safe 36V. Cable is collected and released by coiling device mounted underneath the car. It's cost-saving and long-distance running and doesn't need special rail requests.


Details ofCable Drum Transport Cart

Advantages ofCable Drum Transport Cart
Low noise
It causes low noise level.
Maximum safety
We make sure a maximum safety for operators and the material handled. What we really care is the safety of everyone involved in the process of machine operation.
Easy for operation
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation.
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its highest payloads is up to 300 ton.


Parameter ofCable Drum Transport Cart

Model		BJT-2t	BJT-20t	BJT-50t	BJT-100t	BJT-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	500	600	700	1000	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Recommended Rail Model		P15	P24	P43	QU100	QU100

Our Company
We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold inChina, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc.We are becoming more and more popular around the world and get high evaluations from our cooperators.


Sales Service Of Our Company
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
