Factory Using Cable Drum Powered Transport Cart Customized Size

Factory Using Cable Drum Powered Transfer CartCustomized Size

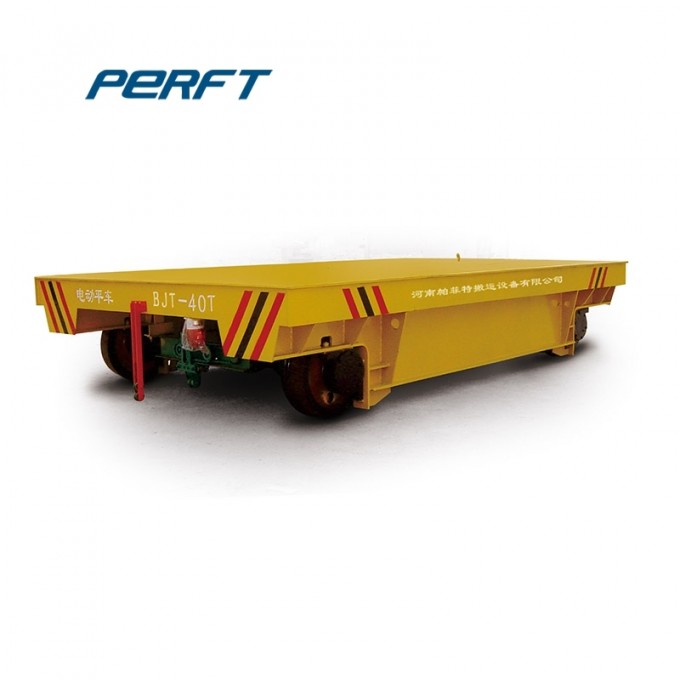

Product Presentation of cable drum transfer car
The Cable Drum Powered Transfer Cart is powered by cable.AC380V current is supplied to traction motor through cable thus to make the car start,stop,move forward,move backward.etc.Our products are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and other application. If this type of transfer car can't meet your need,we can design a special car for you according to your requirement.


Parmeter ofcable drum transfer car

Model		BJT-2t	BJT-20t	BJT-50t	BJT-100t	BJT-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	500	600	700	1000	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.5	5.6	7.8	14.1	26.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Advanages of cable drum transfer cart
Low noise
The motor only make very low noise .
Maximum safety
We make sure a maximum safety for operators and the material handled. What we really care is the safety of everyone involved in the process of machine operation.
Easy for operation
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation.
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its highest payloads is up to 300 ton.
Application of cable drum transfer carOur products are widely applied in metallurgy,manufacture,oil and gas,die shops,shipyards,chemical plant,automotive,mining industry,aerospace,power generation,coil industry,paper mills,metal working,warehouse and so on.


Our other products
Henan Perfect Handling Equipment Co., Ltd produce many kinds of transfer car to meet all wrokshop demands.All our product are customized according to customer's different need.Such as Automotive, Basic metals, Heavy Manufacturing, Rigging, Stamping, and more.

Packing and Shipping
The bodyof the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would becarefully fixed andtransported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
