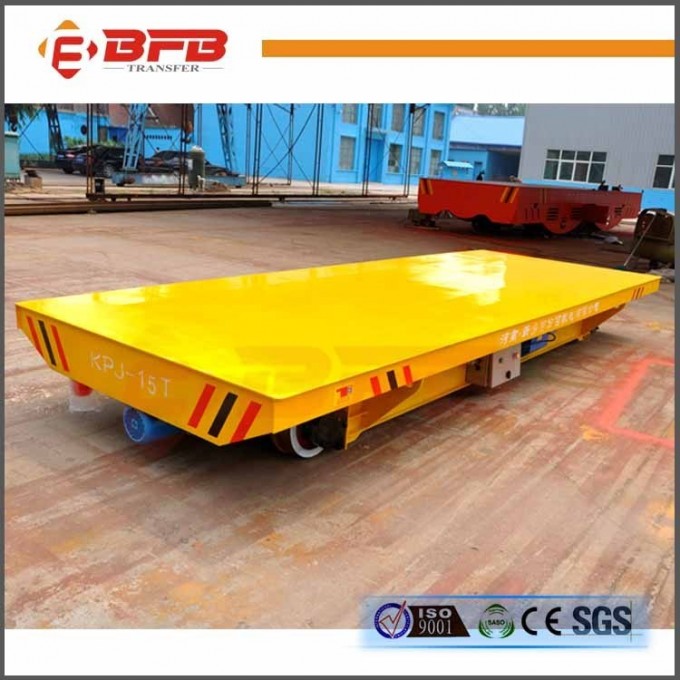

Cable Drum Powered Large Bearing Die Transfer Cart

Brief IntroductionCable Drum Powered Large Bearing Die Transfer Cart
KPJ series cable drum powered die transfer cart----Simply speaking, it is powered by cable drum. it can only be equiped
with cable drum with the cable reels on the bottom of the flat cart. Apparently, it have easy operation, but its distance
may be limited by longth of the cable reels, so you can be customized by your true situation.about our company, it has
been a long year to research and develope it, and our enterprise concept is that attentively manufacturing, keeping on
improving and elabrately serving to make our customer satisfied. Up to now, our item can reach to 300T.


Working Principle
The kind of die transfer cart gets power AC380v through the device of cable reel which is installed at the bottom of the
cart. The motor is controlled by the power through AC control system. By the principle, we can make the transfer flat
cart to start, stop, goforward, backforward etc.
Appliance
The series'transfer cart can be suitable to be used in the bad environment, such as, high-temperature and anti-
explosion condition. It can be used many occassions like paper making field, steel plant, matallurgy Industry,
galvanized plant etc..Compared with the KPX series, the using is not linited; Compared with KPD series, it is not so
strict limitation for the construction of the railway. The load capacity is not limited and if the running distance is more
than 50m, a cable arranger should be installed to arrange the cables, the runnimg distance of KPJ series can reach to
200m.


Character Showing

anti-explosion

anti- high tempeture

Safe devices are installed

Customization can be supported

High efficiency

simple structure

can be used in many occassions

not limited for the using time

not strict requirement for the construction of the railway

The running distance should accord to the length of the cable.Parts ShowingOur Company----BEFANBY


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation
and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company,
which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and
other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany,
Mexico, USA, Turkey, South Africa, Singapore etc.
Why Choose Us?

Our Customer


Our Product Supply

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

Our After Service

Our commitment:1> The load bearing safety factor of the trolley is no less than 120%.2>Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material3> 16 hours engineering service and 24 hours internet service for our customers4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation andPreserve the image of our company.
