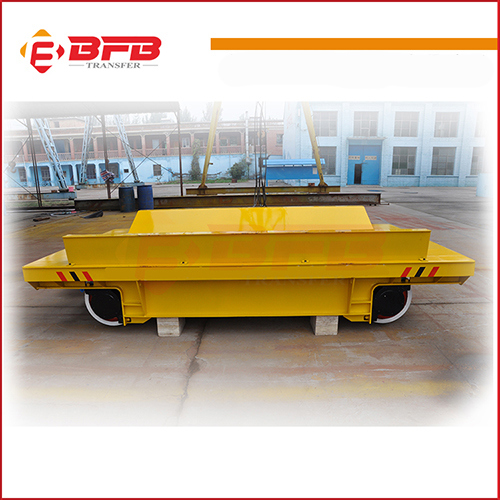

Multi-purpose Transfer Cart Powered by Cable Drum
a
bout our company profile
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is the famous transport trolley manufacturer, whose
products are widely used in the whole world. Besides the advanced core technology, the enterprise marketing concept
of "Any item will have a relevant person to deal with and every one will try his best to treat our customers" is also of
great help to the success.
a
bout our products
(1)Working procedure
KPJ series railway flat carts are powered by the cable reels. The flat carts get power AC 380V through the device of
cable reel which is installed at the bottom of the cart. The motor is co
ntrolled by the power through the AC control
system. We use this principle to operate the carts, for example, start, stop, go forward, backward and so on. The
operation system is low voltage 36V.
(2)Advantages
1. Low cost
2. Easy operation
3. No limit of running time
4. The load capacity is not limited
5. High using frequency
6. No strict requirement for the railways
(3)Application
This series' flat carts can be used in the bad environment, for example, high-temperature and anti-explosion condition.
With its simple structure and low price, this series are more often used transfer materials from one workshop to another.
(4)Components
AC motor, cart f
rame, cart wheels, cable drum, speed reducer, electrical co
ntrol box, push button pendant, remote
controller, VFD(variable frequency drive).
| Model | KPJ-40T |
| Rated Load(t) | 40 |
| Table size(mm) | 5000*2500*700 |
| Wheel base(mm) | 3800 |
| Rail Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 500 |
| Wheel Quantity(Pcs) | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(m/min) | 20 |
| Motor Power(Kw) | 5.5 |
| Running Distance(m) | 50 |
| Max Wheel Load(KN) | 142.8 |
| Reference Weight(t) | 7.3 |
| Recommended Rail Model | P43 |
