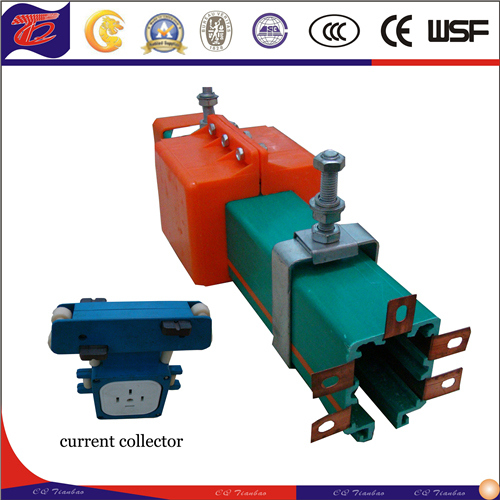

Whole Sale Long Life Copper Conductor Busbar Trolley

*Advantages& Features

-Compact design, save space,easy to install and maintenance
-Stable performence and high conductivity.
-Flexible, Insulated and Safety
- With Aluminum alloy protection,corrosion resisting and long life.

*Specifications

-Number of poles: 3, 4, 5
-Rated Current: 50A, 80A, 120A, 140A, 210A
-Conductor material: Electrolytic copper
-Standard length: 4m

Pictures:



*Technical parameters

1. 3Poles Enclosed Conductor System

Specification	Cross section (mm2)	Rated Current(A)	Dimension (mm)	Weight (kg/m)	Cat. No.
HXTS-3-10/50	10	50	57x67	2.3	68TS57310
HXTS-3-16/80	16	80		2.5	68TS57316
HXTS-3-25/120	25	120		2.8	68TS57325
HXTS-3-35/140	35	140		3.0	68TS57355
HXTS-3-50/170	50	170	65x95	4.0	68TS65350
HXTS-3-70/210	70	210		4.5	68TS65370

2. 4Poles Enclosed ConductorSystem

Specification	Cross Section (mm2)	Rated Current (A)	Dimension (mm)	Weight (kg/m)	Cat. No.
HXTS-4-10/50	10	50	57x67	2.4	68TS57410
HXTS-4-16/80	16	80		2.7	68TS57416
HXTS-4-25/120	25	120		3.0	68TS57425
HXTS-4-35/140	35	140		3.3	68TS57435
HXTS-4-50/170	50	170	65x95	4.5	68TS65450
HXTS-4-70/210	70	210		5.0	68TS65470

3. 5Poles Enclosed Conductor System

Specification	Cross section (mm2)	Rated Current (A)	Dimension (mm)	Weight (kg/m)	Cat. No.
HXTS-5-10/50	10	50	57x67	2.5	68TS57510
HXTS-5-16/80	16	80		2.8	68TS57516
HXTS-5-25/120	25	120		3.2	68TS57525
HXTS-5-35/140	35	140		3.6	68TS57535
HXTS-5-50/170	50	170	65x95	4.9	68TS65550
HXTS-5-70/210	70	210		5.6	68TS65570

*Application
Hoist, Crane,greenhouse,Small Machinery Production Line(like the printing machine )etc. mobile power distribution.


*Accessories
1. Conductor rail:4m/piece
2. End Feeder: one piece for one line
3. Sliding Hanger: Max. distance 1.3m
4. Fixing Support: Max. distance 1.3m
5. Line Feed/Middle Feeder: one piece each line
6. Hanger Clamp: Max. distance 1.3m
7. Joint Cover: one piece each 4m
8. End Cap: piece one line
9. Current Collector
10. Current collector holder/Tow Arm
