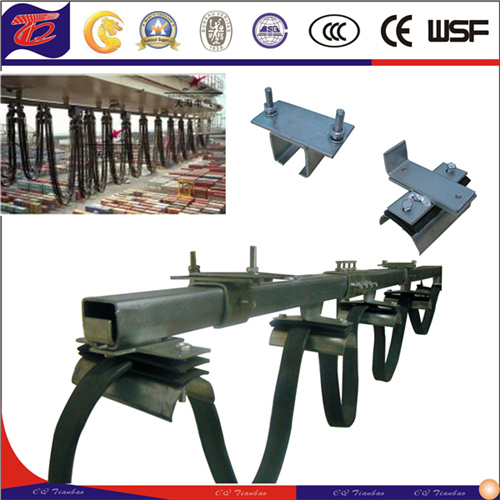

C-Track Cable Carriers Trolley Festoon and Accessories

TheHXDL crane cable lifting system components:cabletrack(cablerail),trolley,flatcable,hangingbracket,coupling,topandenddevice.
ThefestoonsystemiswidelyappliedtothemobiledevicepowertransmissionsysteminthefiledofTobaccomachinery,
railwaygoodyardandtheport,etc.

Techniqueparameter:

1Material:cold-rollinggalvanizedsteelorstainlesssteel
2Ambienttemperature:-35ºC-90ºC
3Trolleymovementspeed&colon;V<120m/min
4Trolleyservicelife&colon;32000H

Components&colon;

1.Crail
ThetrolleymovingintheCrail
IncludestraighttrackabdcurvedsectionwithRmorethan500mm.
Thelengthforthestraightsectionis4m.
Itisextendedwiththecoupling.

ModelNo.	A	B	C	D
HXDL-30	33	40	14	2
HXDL-40	40	40	14	2.5
HXDL-50	50	50	16	2.5
HXDL-60	63	63	18	4.5
HXDL-70	72	68	22	4.5
HXDL-100	100	100	35	5

2.Cabletrolley

Towingtrolley
Thetowingtrolley,itdrivesthemiddletrolleymovealongthetrack.
Fourfullyenclosedballbearings,flexible,appliedtothedensedustoccasion.

ModelNo.	A	L	H	R
HXDL-301	116	130	20	27
HXDL-401	116	130	20	27
HXDL-501	200	188	25	37
HXDL-601	200	188	30	37
HXDL-701	165	190	30	50
HXDL-1001	310	206	60	100

Middletrolley

Wheel&colon;fullyenclosedballbearing
Cableclamp&colon;curvedsoftrubbercushion
Thebumperisinstalledincaseofimpact.

ModelNo.	A	L	H	R
HXDL-302	55	106	25	27
HXDL-402	55	106	25	27
HXDL-502	84	128	25	37
HXDL-602	94	158	30	37
HXDL-702	160	190	30	50
HXDL-1002	260	206	60	100

3.Coupling

Cold-rolledsteelsheet.
Boltinglocking.
Extendingthetrack.

ModelNo.	A	B	C
HXDL-303	38	48	20
HXDL-403	50	50	20
HXDL-503	60	60	22
HXDL-603	73	73	20
HXDL-703	88	88	27
HXDL-1003	114	114	45

4.Hangerbracket
Boltlocking.

ModelNo.	A	B	C	L
HXDL-304	38	48	20	80
HXDL-404	50	50	20	80
HXDL-504	60	60	22	85
HXDL-604	73	73	20	130
HXDL-704	88	88	27	140
HXDL-1004	114	114	45	170

5.Topandenddevice
Topdevice
Beinstalledatthetopofthetracktofixthecable.
Cableisconnectedtothepowersupplyboxandcabletrolley.

ModelNo.	L	H	R
HXDL-305	90	25	27
HXDL-405	90	25	27
HXDL-505	90	25	37
HXDL-605	100	30	37
HXDL-705	120	30	50
HXDL-1005	230	60	100

Enddevice
Preventthetrolleyslideoutofthetrack.

ModelNo.	L	B	C
HXDL-30	90	40	20
HXDL-40	90	40	20
HXDL-50	100	40	30
HXDL-60	100	50	30
HXDL-70	120	50	60
HXDL-100	230	85	80

6.Towarm
Fixthetoptrolleyandthemiddledevice.

Model	L	B	C
HXDL-30T	250	100	80
HXDL-40T	250	140	80
HXDL-50T	260	160	80
HXDL-60T	260	180	80
HXDL-70T	280	180	110
HXDL-100T	390	180	40x40squaretube

C-rail Festoon System Application&colon;
Projiect case&colon;sewagetreatmentworks and application in Factory.

Accessories&colon;
Hanger&colon;every2meter
Middlecabletrolley&colon;every2meters
Coupling&colon;samewiththetracknumbers
Toptrolley&colon;everylineoneset
Twoarm&colon;onepieceeachline
Topandenddevice&colon;oneseteachline
Steelrop&colon;L=1.2xtracklength+lengthoftrolleystored+lengthtopowersource.

Order notice&colon;

1. Track length&colon;____meter
2. Cable length&colon;____meter
3. Quantity of trolley&colon;____pcs (2m ~ 4m with a trolley)
4. Quantity of coupling joints&colon;___pcs (A joint is required when the guide rail is longer than 4m or 6m)
5. Others parts will be list in our quotation.
