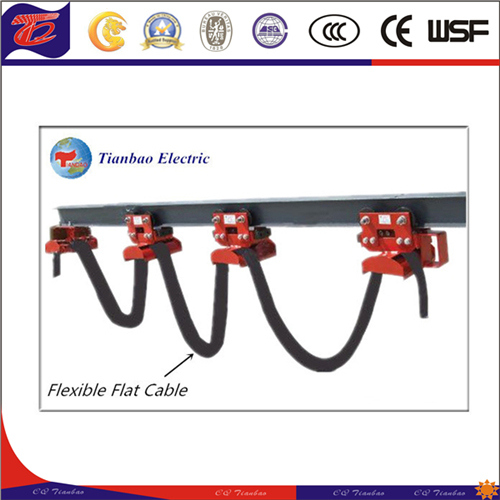

Cable Trolley H Beam Festoon System

CableTrolleyHBeamFestoonSystem


HbeamFestoonSystemisonethemethodsprovidingpowerfortheoverheadcrane.
Travellingwheelssize:DIA86DIA73DIA55
Bearingcapacity:50-150kg
Cablelayers:singlelayer,doublelayer,threelayer.
Systemincludestowingtrolley,endcablefixingdevice,middletrolley.
Installationinstruction:

1aftertheinstallationofthecablefixingdevice,weldastoopingplate.
2adjustthetowingtrolley,keepingthetowingpadofthetrolleyfrombumpingduringthewhole
Travelling
3cablelength=1.2*cranespan+8m
4thelengthofthecableisthesamewiththesteelrope.
5makesureallthecablesclampedwithrubberpad.
6balancethecableplatebearingcapacity.
7adjustthedoublepadtosuittheIbeam.

ThemodelfortheHbeam:100x68x6120x74x6140x80x6160x88x6180x94x6.5

Name	name Model		Name Model		Name Model
	Single layer		Double layer		Tri layer
10# Trolley	Start Trolley	HCI-10-210	Start Trolley	HC12-10-310	Start Trolley	HC13-10-310
	Middle Trolley	HC-10-210	Middle Trolley	HC2-10-310	Middle Trolley	HC3-10-310
	Fix Bracket	HCI1-10-210	Fix Bracket	HCI12-10-310	Fix Bracket	HCI13-10-310
12# Trolley	Start Trolley	HCI-12-210	Start Trolley	HCI2-12-310	Start Trolley	HC13-12-310
	Middle Trolley	HC-12-210	Middle Trolley	HC2-12-310	Middle Trolley	HC3-12-310
	Fix Bracket	HCI I-12-210	Fix Bracket	HCI I2-12-310	Fix Bracket	HCI13-12-310
14# Trolley	Start Trolley	HCI-14-210	Start Trolley	HCI2-14-310	Start Trolley	HC13-14-310
	Middle Trolley	HC-12-410	Middle Trolley	HC2-14-310	Middle Trolley	HC3-14-310
	Fix Bracket	HCI I-14-210	Fix Bracket	HCI I2-14-310	Fix Bracket	HCI13-14-310
16# Trolley	Start Trolley	HCI-16-210	Start Trolley	HCI2-16-310	Start Trolley	HC13-16-310
	Middle Trolley	HC-16-210	Middle Trolley	HC2-16-310	Middle Trolley	HC3-16-310
	Fix Bracket	HCI I-16-210	Fix Bracket	HCI I2-16-310	Fix Bracket	HCI13-16-310
18# Trolley	Start Trolley	HCI-18-210	Start Trolley	HCI2-18-310	Start Trolley	HC13-18-310
	Middle Trolley	HC-18-210	Middle Trolley	HC2-18-310	Middle Trolley	HC3-18-310
	Fix Bracket	HCI I-18-210	Fix Bracket	HCI I2-18-310	Fix Bracket	HCI13-18-310
