2 Ton Mz Forward Discharge Mini Site Dumper Truck

2 Ton Mz Forward Discharge Mini Site Dumper Truck

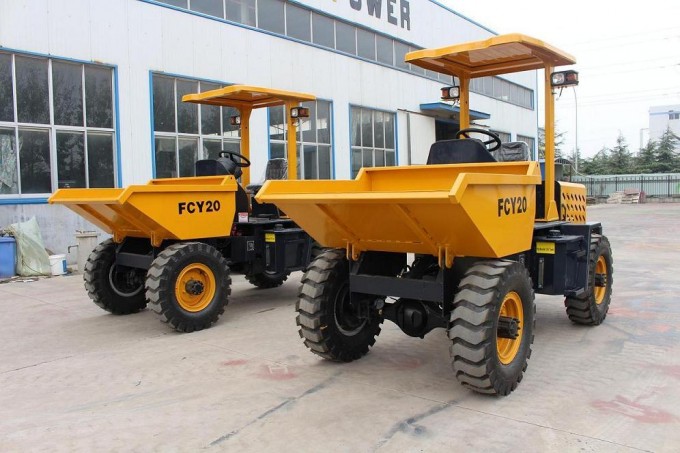

Mini Dumper 2000kg FCY-20
Rated Loading Weight: 2000kg
Bucket Capacity 1.00cbm
Wheel base: 1280MM
Thread: 1500MM
Walking speed:
Forward 3 gear: 24KM/H

Backward gear: 4.5KM/H
Minimum turn radius: 4000MM
Gradeablity: 21
Overall dimensions: 3017x2110x2265MM
Engine Model: ZS1115
Single cylinder, 4-stroke, water cooled, in line type
Rated power: 24HP/2200RPM.

Product Description
As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield, protecting road section, the municipal engineering, and underground mines and so on.
Features:
Dumper truck CE
Loading weight:2000kgs
Bucket capacity:1.0m3
Engine:Deutz engine optional
Company information
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export. We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
Parameters:

FCY-20 Dumper Main Specifications
Engine Details	Model	KM385
	Engine type	In-line, water-cooled, 3 cylinders ,Diesel Engine
	Rated Power	20kw
	Rated Speed	2200 r/min
Hydraulic	Tipping & Steering
Bucket	Bucket Capacity	1. 0 m3
	Rated Loading Weight	2000 kg
	Operating Weight	1550 kg
Dimensions	Overall Length	3450 mm
	Overall Height	2350 mm
	Overall Width	1700 mm
	Wheel base	1360 mm
	Tread	1960 mm
	Minimum turn radius	4000 mm
Tire	Front tire:7.50/16	Rear Tire:7.50/16
Drive Type	4X4 Wheel Drive
