2.0ton Hydraulic Site Dumper with Low Price

2.0ton Hydraulic Site Dumper with low price

As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield, protecting road section, the municipal engineering, and underground mines and so on.

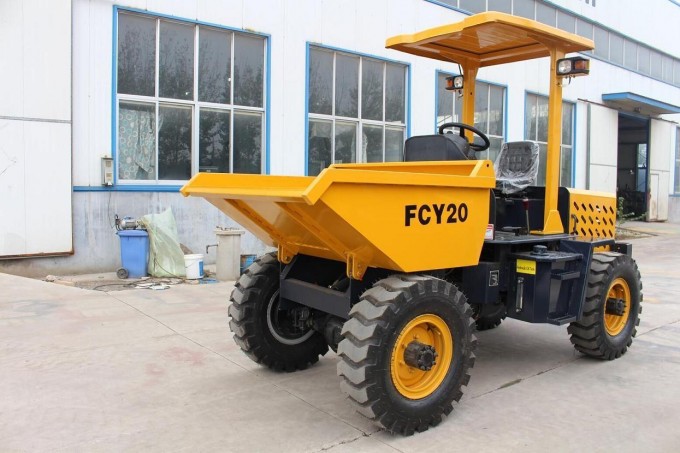

FCY20 SITE DUMPER DETAIL INFORMATION:

Dumper model		FCY20
Specification	Bucket capacity	1.0m3
	Max tractive force	45KN
	Max grade capacity	30°
	Rated loading weight	2000kgs
	Total operating weight	1980kgs
Transmission	Gear box	Geared
	Clutch	Dry,fricted
	Shift	4forward,4reverse
	Max speed	24km/h
	Drive Axle	front axle fixed, rear axle oscillation (+ / - 11)
	Gear box	Geared
Engine	Model	Changchai390
	Type	In-line, water-cooled, 3 cylinders, 4 stroke ,diesel engine
	Rated power	20KW/2200RPM
Working system	Type	Hydraulic steering and hydraulic tipping
	Hydraulic pump power	16mpa
	Hydraulic pump	Gear pump
	Service brake	Oil
	Parking brake	Increase within the hoof remote control with soft shaft type
Over dimension	Total length	3950mm
	Total width	1600mm
	Total height	2550mm
	Wheel base	1360mm
	Tread	1960mm
	Mini Turning radius	4000mm
Tires	Tire model	825-16
	Drive way	4*4
	Shipment	2units in 20 GP,4Units in 40ft container
	Option	Cabin
		DEUTZ engine

Company information

Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufactureR and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export. We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
