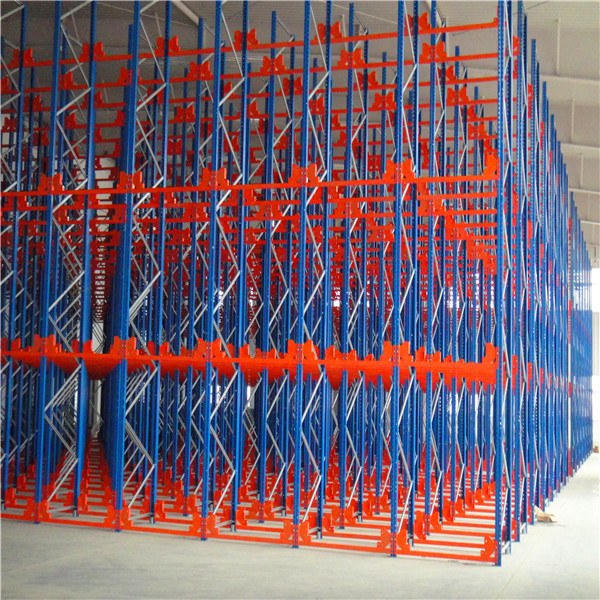

Selective Adjustable Steel Radio Shuttle Pallet Racking for Storage

High Tech Heavy Duty And Power Coating Radio-shuttle Rack



Function introduction

number	Work can	Charteristic point
1	Manual in-out-stock	, Press the remote manually to achieve single in-out-stock
2	Automatic in-out-stock	, Press the remote manually to achieve automatic in-out-stock for many times
3	First in,first out/first in,last out	Achieve in-out-stock at two ends of single line
4	Locating shuttle	Use buzz to locate shuttle out of vision
5	Battery level indication	, Display the remaining amout of electricity to facilitate the operator to charge in time
6	Self-protection funcion	Function to stop car when meet obstacle
7	Rescue function	Specially designed rescue car in case of failure funcion
8	Automatical arrangement	Function to arrange the pallets on rail in place
9	Automatical count	Function to count cargo under certain rule

Pallet size specification

number	standard	pallet size
1	Chinese nation standard	L1200×W1000mm
2	Korea and Japanese national standard	L1100×W1100mm
3	Es standard	L1200×W800mm
4	American standard	L1219×W1016mm
5	Specialized of china Tobacco	L1250×W1000mm
6	Non-standard	pallet size

Technical performance and parameters

Ordernumber	Items	Performanceandparameters
1	(Kg) Rated load capacity	1500
2	(W) Power of lifting motor	550
3	(W) Power of traction motor	550
4	Drive power supply	High energy lithium battery
5	(AH) Battery capacity	80
6	(H) Runtime at the normal temperature	>8
7	(H) Runtime at low temperature	>6
8	(H) Charge time	8
9	Times of recharge	>800
10	Remote	Hand-set remote made in Sweden
11	Controlling mode	/ Handling/Automatic mode
12	(M) Remote distance	100
13	Functional temperate	-30ºC~50ºC
14	Programmable Logic Controller	SiemensPLC
15	Travelling mode	restricted between the designed tracks
16	(m/s) Speed without load	0.8
17	(m/s) Speed with full load	0.6~0.7
18	(mm) Distance of lift	45
19	Transmission mode (lifting)	Chain
20	Transmission mode(traction)	Chain
21	Travelling wheel	High-performance
22	Material of pallet	,, Wood, Plastic and Steel
23	(mm) Deflection of Pallet	<20
24	L×W mm Suitable pallet size	L1100~1250,W800~1100
25	(Kg) Equipment self weight	240

Our Storage Rack Advantages

1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.

Our Advantages

1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc.)
