Selective Warehouse Tear Drop Pallet Racking

Aisle pallet racking is also called Location pallet racking which is of cut-in composite structure; The upright made by continuous punching and rolling;

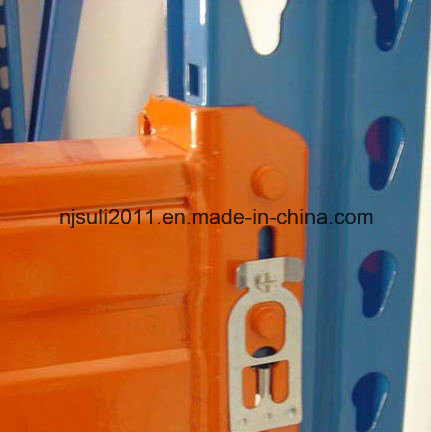

The frame is assembled by uprights and bracings and beams are fixed to uprights by hooks. There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts.

The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg. Its convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift balance-weight forkliftcommon forklift and stackers can be used to load and unload goods.

Steel panels, wooden panels and decking are also available for putting on beams instead of pallets. Pallet racking is the most common storage system which is used in fields of manufacturing industrythe third part logisticsdistribution centerssupermarket and so on.

Pallet racking is the first choice when building High position warehouses and AS/RS System.

We are professional manufacturer of all types of Racking system, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.

Loading capacity: 500-8, 000 kgs UDL/beam level.

Height: 2, 100-9, 900mm

Depth: 700-1, 400mm

Length: 1, 500-4, 000mm

Specail sizes also avaiable to specific storage needs.

Matieral and Finish: High-quality steel Q235

High-quality Powder Coating Finish or Galvanized.

Pallet support bar: Regular type and cut-in adjustable types.

frame	Height (2-13m)	Depth (600-1,400mm)
	Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm
	Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm
	Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm
	Thickness: 1.4--1.5mm
Load capacity	1-4Tons/Layer
Others	- Pitch: 75mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity: 3000T/month - Available in various colors/specifications/sizes
