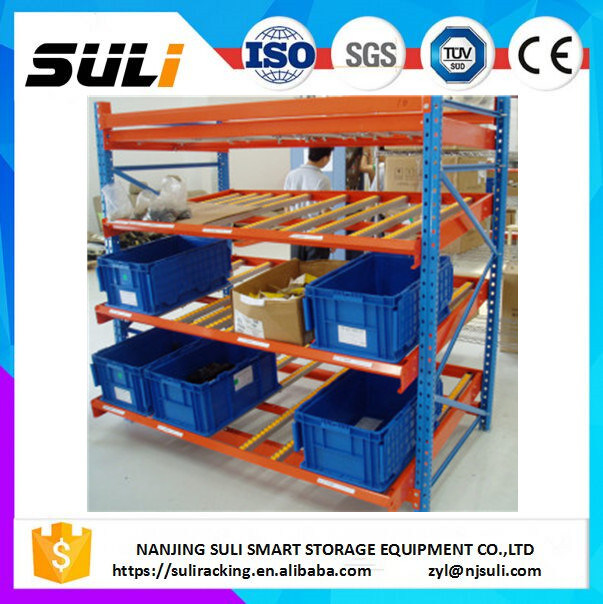

Storage Carton Flow Pallet Rack with roller Track

Storage Carton Flow Pallet Rack/Gravity Rackis used for the storage rack of work apparatus in production line. The material box slide down upon the own gravity, the bevel accessing for materials are more suitable for human factors engineering design.

Shelf levels are sloped to allow the cartons to flow from the loading area to the picking area and using aluminum and metal plate roller tracks system, "first in and first out" is implemented. It is convenient to access and suitable for places such as the two sides of the assembly line, distribution center. Etc. Electronic tags can be attached to make the goods management more easily.

Carton flow racking is usually evolved medium-sized beams Rack, through the roller end of the goods transported to the pick from the stock side, the goods automatically fall with gravity, can be achieved "first in first out" operation, the use of low-cost, memory speed density.

Before and after between the shelf beam of each set or sheet metal aluminum alloy wheel fluid mechanics section, was a certain slope (3 ° Or so) place. Paper goods, packaging or will usually put in plastic flow of goods inside, to use its weight to achieve the flow of goods and FIFO, the goods were transported by car, manual access, access to convenient, shelf unit load on each floor is usually 1000KG so, shelf height of 2.5 meters.

The system is suitable for assembly line both sides of the conversion process, the selection of distribution center operations, and other places, the goods may be accompanied by electronic tags to achieve information management. It is widely used in supermarkets, pharmaceutical, chemical and electronics industries.

Features:

1. Using aluminum or steel roller rail system, and the influence of gravity, first in and first out principle for the goods is implemented

2. Convenient to access and suitable for such places as the two sides of the assembly line and distribution center

3. Carton Flow Racking is widely used in distribution center, assembly workshop and warehouse of high frequency.

4. The transport box, plastic bins and carton box with goods will be put on racking, so we will design and produce the racking according to the box size and weight.

Packaging Detail:

Knockdown package. The beams, shelves and upright posts are separately packed by cartons. Safe for long-distance transportation.

MainParts Specs:	1.Uprightsection:80*60*2.0,90*70*2.0,100*70*2.0,120*95*2.0-2.5mm,etc. 2.Boxedbeamssection:80*50*1.5,100*50*1.5,110*50*1.5,120*50*1.5-2.0, 140*50*1.5-2.0,160*50*1.5-2.0,180*50*2.0mm,etc., 3.Horizontal&diagonalbraces,uprightfootplates,safetylockingpins,bolts&nuts,anchors andallnecessarycomponents.
Material:	High-qualitysteelfromBAOSteelCo.Ltd.,thelargeststeelmanufacturerinChina.
Finish:	High-qualityPowderCoatingFinish.
QuickDelivery	10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits.
