High Quality Passenger Lift with Machine Room, Gearless Motor (BMEV3.0-II)

Bester elevator use the permanent magnet synchronous traction machine, all-in-one control technology and advanced modularization computer control. The product gets CE, ISO9001, ISO14001 certificate and comply with EN81, EN115

High quality:Heidenhain encoder, Premium magnetic steel thermostable up to 180 degree, accurate leveling, PM door operator, optional multi fuction
Energy Saving:as high as 40%
Space saving:smaller shaft size required;
Low noise:quiet brake, 5-10 (db)A noise reduced, perfect for residential
Bester Produce all thecore components by own factory(Machine, Controller, door operator); the components have better compatibility
Joint venture with Swiss:advanced technology, management and quality control system


Specification:
Capacity can be 450kg, 630kg, 800kg, 1000kg, 1250kg and 1600kg.
Speed varies from 1.0m/s, 1.6m/s, 1.75m/s, 2.0m/s to 2.5m/s.
The elevator with gearless motor

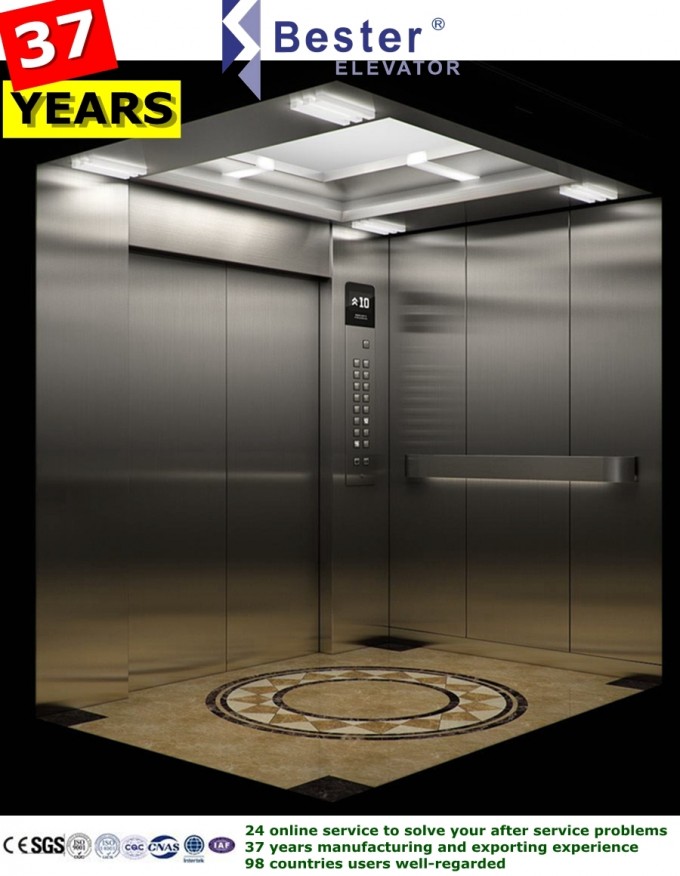

Car wall with spray-coated sheet steel, Available in hairline, mirror and etched stainless steel
Car floor is PCV or Marble
Functions:
Car position indicator
Driver/automatic/inspection transform
Safe guard
Light protection
Overload protection
Automatic homing
Safety brake switch
Car communication
Arrival remind
Car ventilation and light

Parameter table of our passenger elevator

Loading(kg)	Seating Capacity	Speed(m/s)	Car size (CW*CD)mm	Door opening size (DW*DH)mm	Hoistway size(mm)			Machine room size		Max traveling height (m)
				2P Center opening	(HW*HD)	OH	PD	(MW*MD)mm	(MH)mm
400	6	1.0	1100*1000	700*2100	1700*1620	4500	1500	1700*1620	2900	45
630	8	1.0	1400*1100	800*2100	2000*1720	4500	1500	2000*1720	2900	45
		1.6/1.75				4600	1700			96
800	10	1.0	1400*1350	800*2100	2000*1970	4500	1500	2000*1970	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
1000	13	1.0	1600*1500	900*2100	2200*2120	4500	1500	2200*2120	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
1150	15	1.0	1700*1500	1000*2100	2300*2120	4500	1500	2300*2120	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6300	3850			180
1250	16	1.0	1950*1400	1100*2100	2600*2100	4500	1500	2600*2100	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
1350	18	1.0	1950*1500	1100*2100	2600*2200	4500	1500	2600*2200	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
1600	21	1.0	1950*1750	1100*2100	2600*2500	4500	1500	2600*2500	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180

Standard Function

Running Function
VVVF door operator	VVVF elevator drive	Independent running	Automatic pass without stop
Automatically adjust door opening time	Reopen with hall call	Car stop and door open	Expss door closing
Arrival charm	Direct parking
Safety Function
Light curtain protection	Designed stop	Overload device	Anti-stall timer protection
Start protection control	Inspection Operation	Fault self-diagnosis	Repeat door closing
Up/down over-speed limited protection	Device for uncontrolled descending car protection	Device for uncontrolled ascending car protection
Human-machine interface
Micro-touch button for car call and hall call	Floor and direction indicator inside car	Floor and direction indicator in hall
Emergency Function
Emergency Lighting	Inching running	5-way intercom	Bell
Emergency fire operation
Energy Saving function
Fan&Light Automatic Off	Remote shut-off

Optional Function

Automatic rescue operation	Anti-nuisance car call protection	In advance door open	Car call cancellation
Duplex control	Speech synthesis service	Second COP	Car operation panel for disabled persons
Intelligent calling service	Remote monitor	Camera function in the car

All the decoration can be customized for you.
