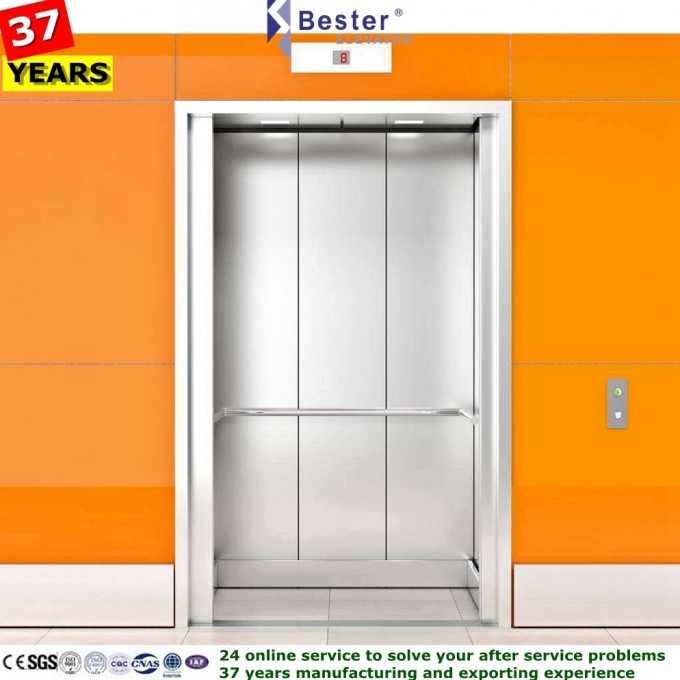

En81 Passenger Elevator with Factory Price

1. Small Machine Room Passenger Elevator Lift

Passenger ElevatorMainfunction

1	Inspectionoperation	29	Overspeedprotection
2	Slowspeedrunning	30	Contactprotectionforbrakeswitches
3	Automaticdooropeningtimeadjustment	31	Interphonecommunication
4	Fullloadbypass	32	Wheelingprotection
5	Automaticturnofflightingandfun	33	Alarmbell
6	Automaticreturntohomelanding	34	Emergencylighting
7	Doorre-closing	35	Levelswitchprotection
8	Errorrecording	36	Falsecallcanceling
9	Hoistwayselflearning	37	Automaticreversalcallcanceling
10	Automaticdooropening	38	Floordisplaydirectionalsetup
11	Attendantservice	39	Isolaterunning
12	Bypassoperation	40	Dotmatrixfloorindicator
13	Automaticcorrectionoffloorpositionsignal	41	Rollingdisplayofrunningdirection
14	Liftlocking	42	CANcommunicationprotection
15	Protectionofdoorlockupoutsidedooorarea	43	Arrivalgong
16	Infraredlightcurtainprotection	44	Emergencyreturnincaseoffire
17	Overloadprotection	45	Maincontrolprotection
18	Reversalruningprotection	46	MaincontrolCPUWDTprotection
19	Anti-skipprotection	47	Discretionalsetupofservicefloor
20	Antiterminalswitchesprotection	48	Testrunning
21	Anti-terminaloverrunningprotection	49	Clockcontrol
22	Phraseprotection	50	Directlanding
23	Contactorprotection	51	Loadweightingdevice
24	Failureanalysisofshaftselflearn	52	Fullcollectivecontrol
25	Motortemperatureprotection	53	Dooropeningbutton(external)
26	Dooropeningfailureprotection	54	Dooropeningbutton(internal)
27	Protectionfordoorlockshortcircuit	55	Firerunningfunction
28	Doorlockfailureforbrakeswitches	56	camera function in the car

2. Main Specification

MAIN SPECIFICATION
Name of the equipment:			Passenger Elevator
Lift style:			BMEV3.0
Door at different floor:			All doors face to the same direction
base floor:
Operating system:			Fully computerized and elective manner
Control system:			modularized and fully computerized control system; serial link communication system.
Driving system:			the new type of BESTER alternating current variable frequency and variable voltage(VVVF) driving system with stepless (infinitely) variable speed
Door operating system:			BESTER door operating system with the function of variable frequency
The location of traction machine:			Above the hoistway
DEVICES OF LADING DOOR
Material of landing doors:			First floor is airline stainless steel, others are painted steel doors
Material of landing door jambs:			First floor is airline stainless steel standard jamb, others are painted steel doors standard jamb
Display unit of landing door:			Adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device:			Adopting the advanced BESTER technology, -the coverplate is made of hairline finished stainless steel; microbutton; LED dot-matric display

DEVICES OF CAR
Car size:			1100mm*1100mm
Decoration of car walls:			Rear wall/Side walll: Stainless steel ; Front: Hairless stainless steel
Decoration of car ceiling:			Hairless stainless steel
Mirror:			Not including
St steel Handrail Number:			Not including
Car platform:			PVC
Material of car door:			Hairline stainless steel
Lighting:			Sunlight illumination
Ventilating facilities:			Air blower with micro noise
Communication facilities:			Concealed interphone
Inspection facilities:			Under the car operating box
Display unit inside the car:			The digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device inside the car:			The coverplate is made of hairline stainless steel; microbutton; LED dot-matric display
The way of opening:			Center opening door
POWER SUPPLY
Power Source:			380V±10%; 50Hz±2%; 3 phases 5 lines; neutral line and earth line are always separated
Lighting:			220V ;50Hz; single phase

Note: the parameter table shows the standard design of our elevator. We also can design elevator for you with your parameter.



Specification:
(1)Capacity can be 450kg, 630kg, 800kg, 1000kg, 1250kg and 1600kg.
(2)Speed varies from 1.0m/s, 1.6m/s, 1.75m/s, 2.0m/s to 2.5m/s.
(3)The elevator with gearless motor
(4)Car wall with spray-coated sheet steel, Available in hairline, mirror and etched stainless steel
(5)Car floor is PCV or Marble

BESTER ELEVATOR use

(1)New Generation Permanent Magnet Synchronous Gearless Traction Machine;
(2)Energy Regenerating &Feedback Device;
(3)Top Advanced Door Operator System
(4)The Advanced And Well-developed Control Technology
Which make her get the CE CERTIFICATE, ISO9001 and ISO14001 CERTIFICATE
And gain the elevator RUNNING EFFECTS as the below:
(1)Effective and Energy saving;
(2)Green environmental protection;
(3)Space saving;
(4)Low noise;
(5)Stable and reliable;



WHY CHOOSE US?

1.Set up in 1979, 37 years manufacturing and exporting experience.
2.Professional technical global client center provides 24 hours service to solve your problems and questions on elevator.
3. Steady and durable use
4.CE, ISO14001, ISO9001, TUV, SGS authenticated

Bester elevator use the permanent magnet synchronous traction machine, all-in-one control technology and advanced modularization computer control. The product gets CE, ISO9001, ISO14001 certificate and comply with EN81, EN115.

Factory Showing


Agent Wanted:

Welcomeexperiencedelevator company as our distributors/agent to cooperate. We would like to provide our distributor/agent promotion price as reward for the cooperation. Contact with me if you are interested.
