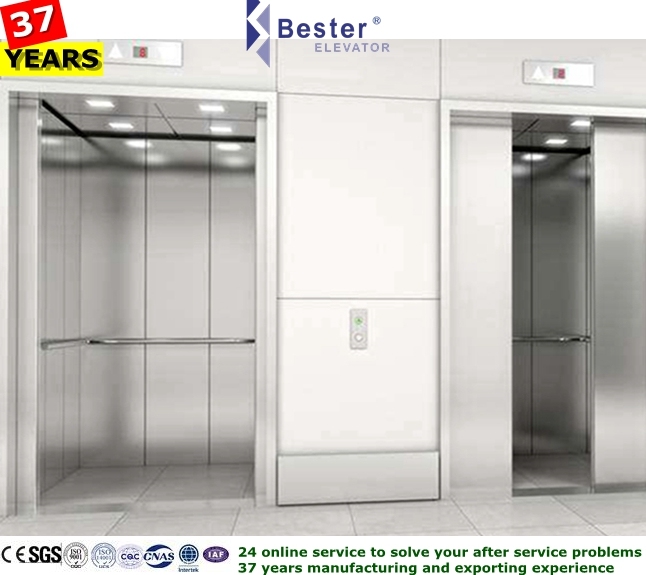

Gearless Passenger Elevator for Commercial and Residential Buildings

SPECIFICATIONS:

(1)Capacity can be 450kg, 630kg, 800kg, 1000kg, 1250kg and 1600kg.
(2)Speed varies from 1.0m/s, 1.6m/s, 1.75m/s, 2.0m/s to 2.5m/s.
(3)The elevator with gearless motor
(4)Car wall with spray-coated sheet steel, Available in hairline, mirror and etched stainless steel
(5)Car floor is PCV or Marble

Main parameter
Name of the equipment:	computerized modularized VVVF controlled passenger lift / residential lift
Lift style:	BMEV3.0
Stops:	all doors face the same direction
base floor:	the first floor
Main configuration
Operating system:	fully computerized and elective manner
Control system:	Modularized and fully computerized control system; serial link communication system.
Driving system:	the new type of BESTER alternating current variable frequency and voltage driving system with stepless (infinitely) variable speed
Door operating system:	BESTER door operating system with the function of variable frequency
The location of traction machine:	inside the machine room at the top of the hoistway
Devices of landing door
Material of landing doors:	hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference)
Material of landing door jambs:	hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference)
Configuration of landing door jambs:	standard miniature landing door jambs
Display unit of landing door:	adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device:	adopting the advanced BESTER technology, -the cover plate is made of hair line finished stainless steel; micro button; LED dot-matrix display
Devices of car
Decoration of car walls:	high quality spray painted steel plate/ hair line finished stainless steel (just for reference)
Decoration of car ceiling:	in a standard mode
Car platform:	abrasion-proof plastic floorboard
Material of car door:	high quality spray painted steel plate/ hair line finished stainless steel (just for reference)
Lighting:	special light which is energy-saving and has high efficiency; sunlight illumination
Ventilating facilities:	air blower with micro noisy
Communication facilities:	concealed interphone
Inspection facilities:	under the car operating box
Display unit inside the car:	adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device inside the car:	adopting the advanced BESTER technology, -the coverplate is made of hair line finished stainless steel; micro button; LED dot-matrix display
The way of opening:	2 panel center-opening door; 2P-CO.

Note: the parameter table shows the standard design of our elevator. We also can design elevator for you with your parameter.



The basic function

No.	Function	Note
1	Inspection operation
2	All collective selective control
3	Self-save operation
4	Automatic door opening at stops
5	Automatic control of door opening time
6	Call out of the landing door
7	Door closing in advance while pss the close button
8	Door opening while pss the open button
9	Repeat opening
10	Canceling of discommend
11	Incorrect command canceling
12	Automatically canceling command when running reverse
13	Directly stopping
14	Full load bypass
15	Car approaching gong (chime)
16	The lighting and blower inside the car automatically switch off in the condition of no use
17	Auto-return
18	Human-based liquid crystal display operation device	Optional
19	Speed setting up and feedback curving display	Optional
20	Fault history recording	Optional
21	Self-study of shaft and floor data
22	Setting up the service floor at will
23	Setting up the displayed floor number at will
24	Driver operation
25	Driver priority orientation
26	Bypass by driver pssing button
27	Independent operation
28	Dot-metric floor number display
29	Rolling display about running direction
30	Automatic correction of the floor position signal
31	Locking service
32	Emergency return while fire broking out
33	Fireman operation	Fire emergency elevator (Optional)
34	Calling out stops in voice	Optional
35	Protective measures of refusing opening out of the door opening area
36	Light-beam curtain protection
37	Protection from overload
38	Anti-nuisance function
39	Reversal protection
40	Protection from skidding
41	Security operation
42	Protection from terminal over travel
43	The detection and protection of safety contacts of contactor
44	Protection from speed control device errors
45	Protection of main control CPU WDT
46	Monitor of district (building)	Optional, through RS-485 communication cable
47	Remote monitoring and service center	Optional, through MODEM and telephone line
48	Parallel operation	Optional
49	Group controlled operation	Optional
50	Standby power operation	Along with group controlled operation
51	Continuous operation	Along with group controlled operation
52	Up peak service	Optional, along with group controlled operation
53	Zoning operation	Along with group controlled operation
54	Service floor changeover by switching control	Optional, along with group controlled operation
55	Car approaching lamp	Optional, along with group controlled operation

WHY CHOOSE US?

1.Set up in 1979, 37 years manufacturing and exporting experience.
2.Professional technical global client center provides 24 hours service to solve your problems and questions on elevator.
3. Steady and durable use
4.CE, ISO14001, ISO9001, TUV, SGS authenticated

Bester elevator use the permanent magnet synchronous traction machine, all-in-one control technology and advanced modularization computer control. The product gets CE, ISO9001, ISO14001 certificate and comply with EN81, EN115.
Bester elevator, escalator and elctrical manufacturing dep.

BESTER ELEVATOR use
(1)New Generation Permanent Magnet Synchronous Gearless Traction Machine;
(2)Energy Regenerating & Feedback Device;
(3)Top Advanced Door Operator System
(4)The Advanced And Well-developed Control Technology which make her get the CE CERTIFICATE, ISO9001 and ISO14001 CERTIFICATE and gain the elevator RUNNING EFFECTS as the below:
(1)Effective and Energy saving;
(2)Green environmental protection;
(3)Space saving;
(4)Low noise;
(5)Stable and reliable;
