Liugong Hold Concrete Mixer Truck Yzh5253gjbhw

Sunny Feng/ Sales Manager Mobile: +86-18019735352 Web: http://www.evangelchina.com

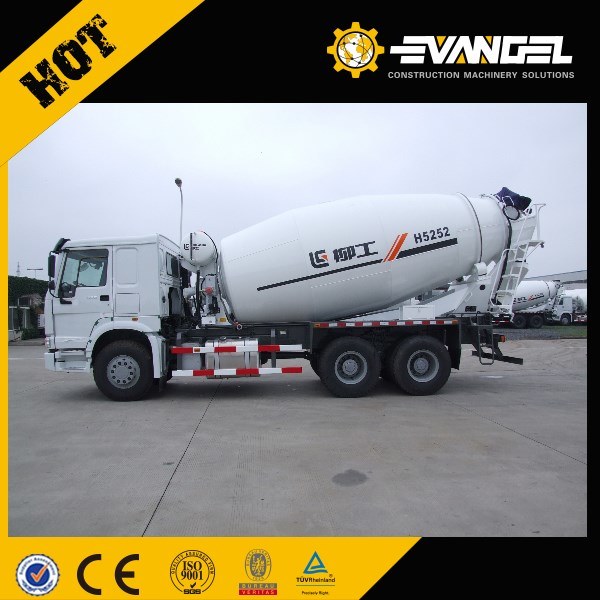

Liugong Hold Concrete Mixer Truck YZH5253GJBHW

1. Driving type: 6*4
2. Drum volume: 13.4m
3. Engine power 247KW China III emission


Best regards,
Sunny Feng/ Sales Manager
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
(CHINESE LEADING ConSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China

Mobile: +86-18019735352

Web: http://www.evangelchina.com

CHASSIS
Chassis Model DELONG SX5255GJBJR364
Emission Stage CHINA 3
Engine Power 247KW
Engine Displacement 9.726L
Driving Type 6× 4
Wheelbase 3625+1350mm
Max. Running Speed 77km/h
Min. Turning Radius 19 m
Brake type Air pssure of double loop
Truck loading capacity 12070 kgs


DRUM
Drum material Baosteel B520JJ
Drum volume 13.4 m³
Drum loading capacity 8m³
Drum agitating volume 5m³
Material charge speed ≥3 m³ /min
Material discharge speed ≥2.7 m³ /min
Material discharge control Manual
Drum remnant ratio of discharging ≤0.5%
Drum rotating speed 0-18 (r/min)
Drum tilt angle 13°


HYDRAULIC SYSTEM
Hydraulic pump Sauer KPV23-674R
Hydraulic pump type Piston pump
Hydraulic motor Sauer KMF23-516-50
Speed reducer Sauer TMG61.2
Hydraulic circuit type closed circuit cycle
Hydraulic tank capacity 20L
Water tank capacity 450 L

DIMENSIONS&WEIGHT
Overall Length 8850mm
Overall Width 2496 mm
Overall Height 3780 mm
Truck gross Weight 25000 kgs
Truck net weight 12800 kgs
DIMENSIONS&WEIGHT
Overall Length 8850mm
Overall Width 2496 mm
Overall Height 3780 mm
Truck gross Weight 25000 kgs
Truck net weight 12800 kgs
