Detailed Description
2016 New Product Co

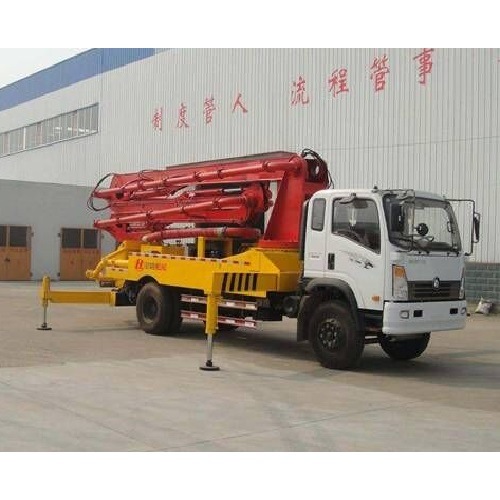

ncrete pump truckHLQ5160THBTechnical Specifications
| Chassis Model | CDW1160A1C4 | Engine Model | YC4E160-33 | Cab | CNHTC WANGPAI |
| Wheel base | 4700mm | axle ratio | 5.833 | Transmission | 6 speed,with
auxiliary |
| Tire | 9.00R-20 | Brake | Breathe brake | frame | 245*10 |
| Steering | Power steering |
|
|
|
|
|
| Others | 3.7 tons front axle, rear axle 9 t, six-speed gearbox, 250 double frame |
| Vehicle Model | HLQ5160THB |
| Name | | parameters |
| Pump system | maximum theoretical output | m³/h | 40 |
| Concrete outlet pssure | Mpa | 8 |
| Allow maximum particle diameter (send tube 125) | mm | Gravel 40 |
| Concrete Slump | cm | 14-23 |
| Concrete cylinder diameter | mm | 160-180 |
| Piston stroke | mm | 1000-1200 |
| maximum pump frequency | times/min | 26/13 |
| Hydraulic pumping system rated pssure | Mpa | 20 |
| Hopper Capacity | L | 500 |
| Pendulum Valve Type | mm | s-type valve |
| Pipe inner diameter | mm | 125 |
| Boom System | Boom structure type |
| Roll fold |
| Boom number |
| 4 |
| Boom angle range extension | O | 1-90/11-180/111-240 |
| Pumping vertical height | M | 25 |
| Boom radius of gyration | M | 18 |
| Boom swing angle | O | 360°Full swing |
| Hydraulic system pssure | Mpa | 30 |
Chassis System | Chassis Model |
| CDW1160A1C4 |
| Wheel base | mm | 4700 |
| Front/Rear overhang | mm | 1285/3050 |
| Max speed | Km/h | 80 |
| Engine parameters | Engine Model | YC4D160-33 |
| Engine Power(hp) | 160hp |
| Total weight | Kg | 15775 |
| Curb weight | Kg | 15580 |
| Vehicle Dimensions | (L*W*H) | mm | 9465x2300x3500 |
WuhanYueruixiangTechnologyCo.,Ltdisaprofessionalsupplierofconstructionmachineryandagriculturemachinery,WearelocatedinWuhanCity,Hubeiprovince,China.
OurmainproductsincludesConstructionmachinery&co
lon;Wheelloader,skidsteerloader,Forklift,roadroller,bulldozer,motorgrader,excavator,platecompactor,rammer,concretecutter,ect.
AndAgriculturemachinery&co
lon;Tractorsandfarmingimplements.
Welcometocontactwithusatanytime.
