| Dimensions: | ||
| Overall size(length × width × height) | 9780mm× 2500mm× 3990mm | |
| Wheel base | 3800mm+1350mm | |
| Wheel track(Front/Rear) | 2027mm/1820mm | |
| Ground clearance | 298mm | |
| Weight: | ||
| N. V. W | 14000kg | |
| Payloading capacity | 10900kg | |
| G. V. W | 24900kg | |
| Axle loading capacity(Front/Rear) | 7000/2x9000kg | |
| Performance: | ||
| Max. traveling speed | 75km/h | |
| Min. turning diameter | 21.2m | |
| Grade ability | 48% | |
| Approach angle | 24° | |
| Departure angle | 30° | |
| Fuel consumption | 33L/100km | |
| Engine | ||
| Model | L340 20 | |
| Type | Direct injection, turbocharged, water cooled | |
| Rated power | 250kW | |
| Transmission: | ||
| Type | 9JS150T-B synchromesh, forward 9, reverse 1 | |
| Ratio | 12.11; 8.08; 5.93; 4.42; 3.36; 2.41; 1.76; 1.32; 1.00; 12.66R | |
| Steering: | ||
| Type | ZF8098, hydraulic steering with power assistance | |
| Ratio | 22.2~26.2 | |
| Front axle | ||
| D310, rigid stub axle with double T-cross section | ||
| Rear axle | ||
| HC16 | ||
| Ratio | 5.73 | |
| Clutch | ||
| Single-plate dry coil-spring clutch, diameter 420, hydraulically operated with air assistance | ||
| Brakes | ||
| Service brake-Dual circuit compssed air brake | ||
| Parking brake-Spring energy operating on rear wheels | ||
| Auxiliary brake-Engine exhaust brake | ||
| Wheels rim& Tyres | ||
| Rims | 8.50R20 | |
| Tyres | 11.00-20 | |

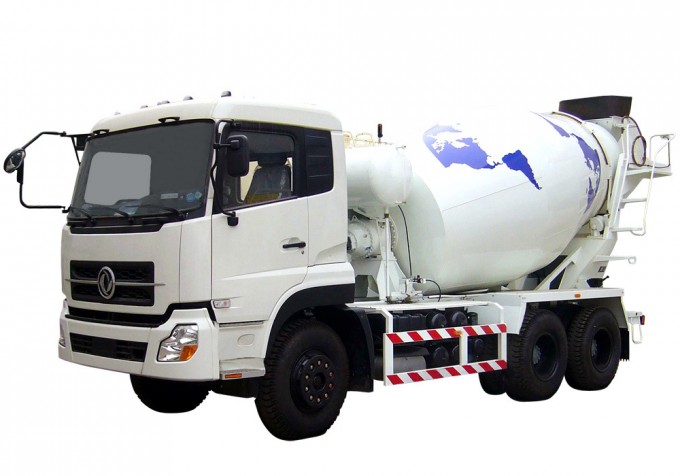

| Mixer Drum | ||
| Effective capacity | 8m 3 | |
| Leaning angle | 12 o | |
| Rotation speed | 0~14rpm | |
| Feeding speed | ≥ 3.5m 3 /min | |
| Discharging speed | ≥ 3m 3 /min | |
| Landslide degree | 50~210mm | |
| Surplus rate | ≤ 1% | |
| Water tank | 400L | |
