Detailed Description
Truck Mounted Co
ncrete Pump with JS500 Twin-Shaft Mixer
| Pumping System | | |
| Pump Model | / | 40.7.37S |
| Max. Theo. Pumping Output | m3/h | 40 |
| System Pressure | Mpa | 28 |
| Delivery Cylinder×Stroke | mm | Φ200×1000 |
| Distribute Valve | / | S Valve |
| Oil Tank | L | 300 |
| Aggregate Size | mm | Pebble:40 Crushed Stone:30 |
| Generator | kw | 100 |
| Main Motor | kw | 37 |
| Main Pump Brand | / | Flutek Kawasaki K3V112 |
| Outlet Pressure | Mpa | 8 |
| Main Oil Cylinder/Rod×Stroke | mm | Φ100/Φ70×1000 |
| Diameter of Outlet | mm | Φ200 |
| Delivery Pipe | mm | Φ125 |
| Slumps | cm | 12-23 |
| Generator Brand | Optional | Commins |
| Mixing System | | |
| Mixer | / | JS500 |
| Max. Theo. Mixing Output | m3/h | 28 |
| Incharge Hopper×Filling Height | L×mm | 800×1200 |
| Discharge Hopper Capacity | L | 500 |
| Flexible | / | Yes |
| Mix Motor | kw | 18.5 |
| Hoist Motor | kw | 5.5 |
| Water Pump | kw | 0.75 |
| Vibrator | kw | 0.75×2 |
| Batching System | | |
| Hopper Capacity | m3 | 1.8 |
| Hydraulic Outrigger | pcs | 2 |
| Compssor | bar | 3 |
| Flexible | / | Yes |
| frame | | |
| L×W | mm | 4000×2200 |
| Hydraulic Outrigger | pcs | 4 |
| Chassis | | |
| Brand | / | CDM |
| Chassis Model | / | CDM5070THB |
| Gear-box | / | 145F |
| Driving Speed | Km/h | ≤80 |
| Wheel base | mm | 3360 |
| Mass | kg | 12688 |
| Engine/Model | / | yunnei/4102 |
| Tyre | pcs | 6 |
| Tyre Size | / | 8.25R16 |
| Size(W/O Batcher) | mm | 7300×2210×2580 |
| Size(Driving with Batcher) | mm | 8400×2210×2580 |
| Size(Working with Batcher) | mm | 10200×2210×2580 |
| | |
| | |
| | |
| | |

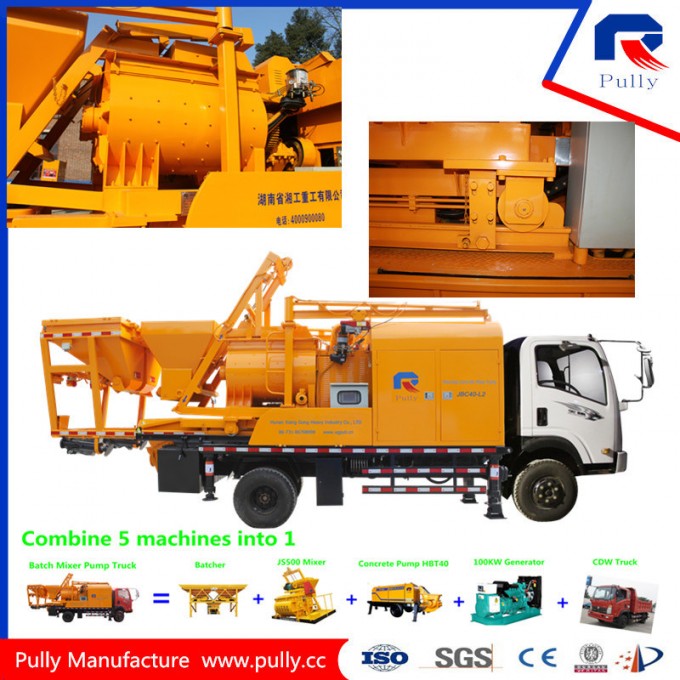

Detailed Images
FAQ
1. Are you manufacturer?
----Yes, we are manufacture of concrete machineries since 2004,we can provide stationary concrete pump, trailer concrete mixer pump and truck mounted concrete mixer pump, Micro wheel loader, Construction elevator and Suspended platform and so on.
2. Do you have discount for the orders?
----It depends on your order quantity, the more you order, the more discount you can get.
3. What certifications you have ?
-----ISO9001:2008 and other domestic certifications and memberships.
4. Do you have aftersales service?How you will supply with the service?
------Yes, of course. Engineers are available by the third party in overseas, service in 24 hours
5. How long is your product warranty?
-----6 months to 12 Months
6. Do you supply with some free spare parts and tools what are they?
------Yes, we supply with some free spare parts of machines and repaire tools
For any more questions, please feel free to contact me via email or phone.
