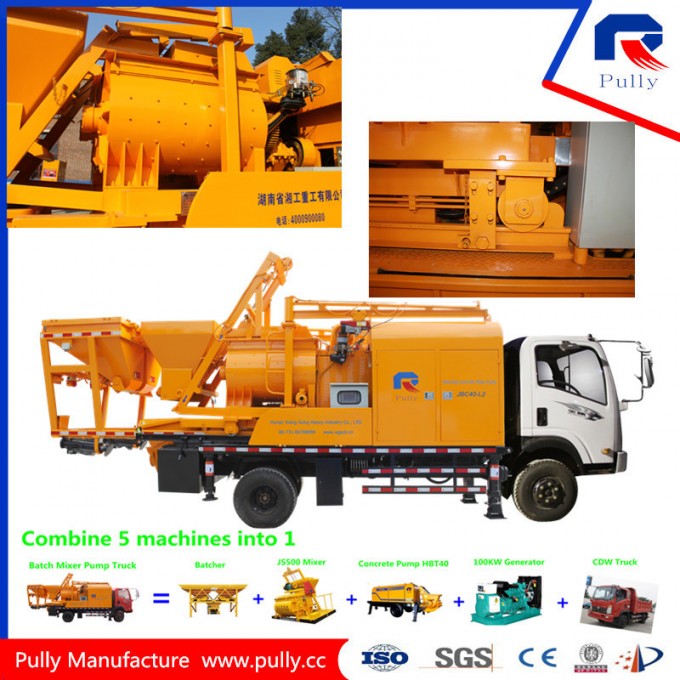

PullyTruck Mounted Co
ncrete Mixer Pump JBC40-L
JBC40-Lmobile co
ncrete batch plant is a new type trailer co
ncrete plant, reliably accurate batching and weighing,
effective mixing, and fast conveying.
>>>
Production Specifications| Pumping System |
| Pump Model | / | 40.7.37S |
| Max. Theo. Pumping Output | m3/h | 40 |
| System Pressure | Mpa | 28 |
| Delivery Cylinder×Stroke | mm | Φ200×1000 |
| Distribute Valve | / | S Valve |
| Oil Tank | L | 300 |
| Aggregate Size | mm | Pebble:40 Crushed Stone:30 |
| Generator | kw | 100 |
| Main Motor | kw | 37 |
| Main Pump Brand | / | Flutek Kawasaki K3V112 |
| Outlet Pressure | Mpa | 8 |
| Main Oil Cylinder/Rod×Stroke | mm | Φ100/Φ70×1000 |
| Diameter of Outlet | mm | Φ200 |
| Delivery Pipe | mm | Φ125 |
| Slumps | cm | 12-23 |
| Generator Brand | Optional | Commins |
| Mixing System |
| Mixer | / | JS500 |
| Max. Theo. Mixing Output | m3/h | 28 |
| Incharge Hopper×Filling Height | L×mm | 800×1200 |
| Discharge Hopper Capacity | L | 500 |
| Flexible | / | Yes |
| Mix Motor | kw | 18.5 |
| Hoist Motor | kw | 5.5 |
| Water Pump | kw | 0.75 |
| Vibrator | kw | 0.75×2 |
| Batching System |
| Hopper Capacity | m3 | 1.8 |
| Hydraulic Outrigger | pcs | 2 |
| Compssor | bar | 3 |
| Cement Hanger | kw | 0.95 |
| Wireless control | / | Yes |
| Flexible | / | Yes |
| frame |
| L×W | mm | 4000×2200 |
| Hydraulic Outrigger | pcs | 4 |
| Chassis |
| Brand | / | CDW |
| Chassis Model | / | YN33CRD1 |
| Gear-box | / | 145F |
| Max.Speed | Km/h | 80 |
| Wheel base | mm | 3650 |
| Mass | kg | 12688 |
| Chassis No. | / | CDW5070THB |
| Tyre | pcs | 6 |
| | |
| The Whole Machine |
| Tyre Size | / | 8.25R16 |
| Size(W/O Batcher) | mm | 7300×2210×2580 |
| Size(Driving with Batcher) | mm | 8400×2210×2580 |
| Size(Working with Batcher) | mm | 10200×2210×2580 |

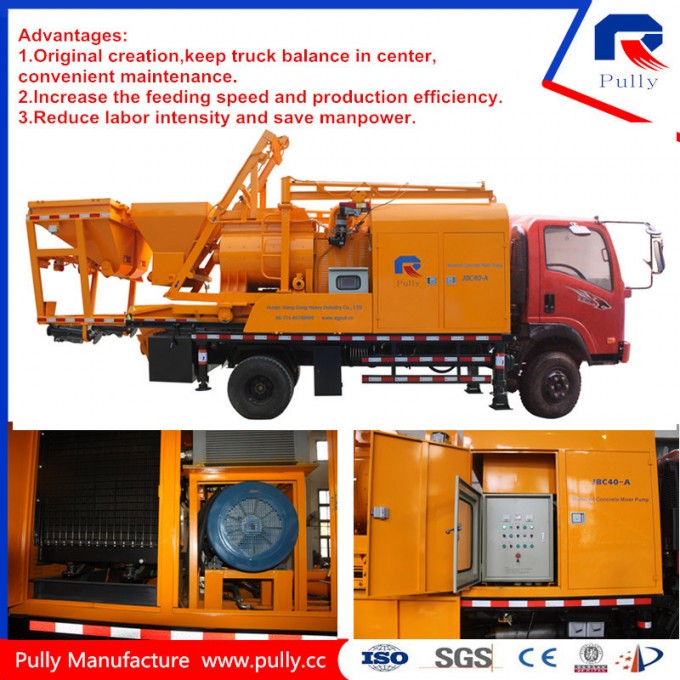

>>>Product Advantage
>>>Production Application
>>> OurServices
1. According to your inquiry, We will reply to you in 24 hours.
2. After-sales service: We will send the technical personnel to the site for installation, commissioning
andtraining work.
3. Warranty:12 Month.Warranty period, in addition to the force majeure and man-made factors, the
damage caused by design, process and manufacturing equipment, the seller is responsible for sending
people to offer free repair.
4. We will send the spare parts as soon as possible when necessary, equipment repair parts provided
by the seller are original, authentic, quality goods.
>>>Delivery&Payment&Packing
1. Delivery time:7-12days after receipt of your deposit.
2. Payment terms: 30% T/T in advance, thebalanceis paid (by T/Tor L/C) before delivery.
>>>F AQ
1. Are you manufacture?
----Yes, we are manufacture of concrete machineries since 2004,we can provide stationary concrete
pump,trailer concrete mixer pump and truck mounted concrete mixer pump, Micro wheel loader,
Construction elevatorand Suspended platform and so on.
2. Do you have discount for the orders?
----It depends on your order quantity, if you have more than 20 pcs machines order, there will be 5%
discountof the total payment.
3. Do you supply with some free spare parts and tools what are they?
----Yes, we supply with some free spare parts of machines and repaire tools.
>>> Company Information:
Pullycompany is aprofessional manufacturer and supplier of construction machinery in China. Our
company which specializes in R&D. manufacturing, selling and after-sales service of concrete pump
with mixer,which had more than 13 years manufacture experience. Our company can providestationary
concrete pump, trailer concrete mixer pump and truck mounted concrete mixer pump,concrete mixer,
wheel loader and so on.Every year our company will participate in some famous domestic and international
construction machinery exhibition.
