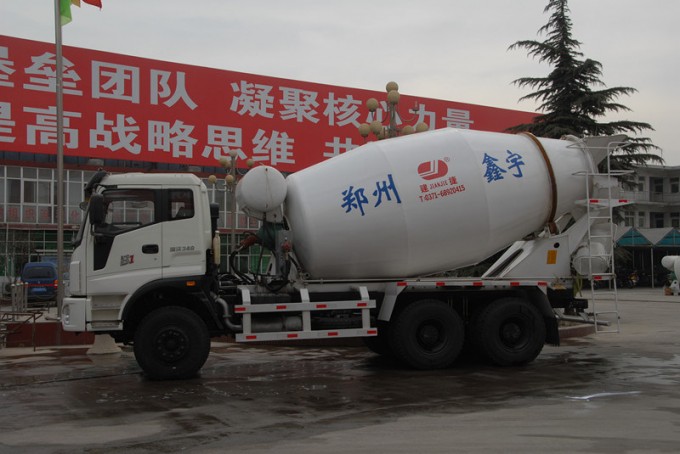

(JC8m3/JC8m3--8) Mobile Concrete Truck, 8cbm Wheel Concrete Mixer 8cbm

(JC8m3/JC8m3--8) Mobile Concrete Truck, 8cbm Wheel Concrete Mixer 8cbm
Chassis model: XY5224GJB4/GJB
Cab: East Wind153 (1.5 rows)
Gearbox: 7JS110A
Wheelbase: (3, 600+1, 350mm)
Maximum speed: 70km/hr
Total weight: 11, 500kg
Dimensions: 8, 610 x 2, 480 x 3, 750mm
Drum:
Geometric volume: 12.83m³
Nominal capacity: 8m³
Filling ratio: 0.62
Feeding height: 3, 800mm
Maximum diameter (inner): Ø 2, 300mm
Drum rotations: 0 to 11/0 to 14rpm
Discharge residual percentage: <1%
Slump scope: 50 to 210
Engine:
Model: YC6A260-21
Rated power: 191kW/260hp
Hydraulic system:
Reducer type: OK-45/okor141 (imported)
Oil pump type: Proportional pump/variable displacement pump
Motor: Cycloid/quantitative
Hydraulic circuit: Open loop, split type/static circuit, single/mixed drive
Water supply system:
Water tank capacity: 420L
Water supply mode: Pneumatic water supply, working pssure of ≤ 0.2 to 0.3MPa

Main technical parameters of the top machine

model	JC3m³-D	JC4m³-D	JC6m³-D	JC8m³-D	JC8m³	JC10m³	JC12m³
overall dimension(L*W*H)(mm)	3983*(1100+943)*2175	4350*(1100+950)*2350	5180*(1125+1046)*2580	6015*(1150+1100)*2632	6015*(1150+1100)*2632	6744*2372*2716	7300*2372*2750
the dimension of bottom machinery(L*W*H)(mm)	3200*860*120	3600*860*120	4430*860*140	4900*860*160	4900*860*140	5580*860*140	6100*860*140
nominal mixing capacity of tank	3m³	4m³	6m³	8m³	8m³	10m³	12m³
geomerical volume of tank	5.5m³	6.8m³	9.6m³	13.4m³	13.4m³	16.4m³	19m³
coefficient of loading ration	0.545	0.588	0.625	0.545	0.545	0.61	0.63
drum roating speed	0-14rpm	0-14rpm	0-14rpm	0-12.5rpm	0-14rpm	0-14rpm	0-14rpm
inclinated angle of mixing tank axial line	16º±15´	16º±15´	15º±15´	15º±15´	15º±15´	11º±15´	11º±15´
inlet height(mm)	2072	2250-2350	2446	2552	2552	2716	2750
inclinated angle of discharge duct	45º	45º	45º	45º	45º	45º	45º
dumping direction of discharge duct	180º	180º	180º	180º	180º	180º	180º
legth of discharge duct	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm
the concrete slump that is suitable for conveying	40-210	40-210	40-210	40-210	40-210	40-210	40-210
residual rate	<1%	<1%	<1%	<1%	<1%	<1%	<1%
water tank capacity	180L	180L	180L	180L	180L	180L	180L
