Detailed Description
Overall&co
lon;
Chassis model&co
lon; XY5114GJB4
Cab&co
lon; TJG120G (1.5 rows)
Gearbox&co
lon; 8JS85E
Wheelba
se&co
lon; 3420mm
Maximum speed&co
lon; 85km/hr
Total weight&co
lon; 6150kg
Dimensions&co
lon; 6, 680 x 2, 480 x 3, 480mm
Drum&co
lon;
Geometric volume&co
lon; 5.5m³
Nominal capacity&co
lon; 3m³
Filling ratio&co
lon; 0.55
Feeding height&co
lon; 3350mm
Maximum diameter (inner)&co
lon; Ø 1, 800mm
Drum rotations&co
lon; 0 to 12rpm
Discharge residual percentage&co
lon; <1%
Slump scope&co
lon; 40 to 210
Engine&co
lon;
Model&co
lon; YC4D130-33
Rated power&co
lon; 95.5kW/130hp
Hydraulic system&co
lon;
Reducer type&co
lon; OK-45
Oil pump type&co
lon; Proportio
nal pump
Motor&co
lon; Cycloid
Hydraulic circuit&co
lon; Open loop, split type, single drive/mixed drive
Water supply system&co
lon;
Water tank capacity&co
lon; 180L
Water supply mode&co
lon; Pneumatic water supply, working pssure ≤ 0.2 to 0.3MPa
Main technical parameter of the top machine
| model | JC3m³-D | JC4m³-D | JC6m³-D | JC8m³-D | JC8m³ | JC10m³ | JC12m³ |
| overall dimension(L*W*H)(mm) | 3983*(1100+943)*2175 | 4350*(1100+950)*2350 | 5180*(1125+1046)*2580 | 6015*(1150+1100)*2632 | 6015*(1150+1100)*2632 | 6744*2372*2716 | 7300*2372*2750 |
| the dimension of bottom machinery(L*W*H)(mm) | 3200*860*120 | 3600*860*120 | 4430*860*140 | 4900*860*160 | 4900*860*140 | 5580*860*140 | 6100*860*140 |
| nominal mixing capacity of tank | 3m³ | 4m³ | 6m³ | 8m³ | 8m³ | 10m³ | 12m³ |
| geomerical volume of tank | 5.5m³ | 6.8m³ | 9.6m³ | 13.4m³ | 13.4m³ | 16.4m³ | 19m³ |
| coefficient of loading ration | 0.545 | 0.588 | 0.625 | 0.545 | 0.545 | 0.61 | 0.63 |
| drum roating speed | 0-14rpm | 0-14rpm | 0-14rpm | 0-12.5rpm | 0-14rpm | 0-14rpm | 0-14rpm |
| inclinated angle of mixing tank axial line | 16º±15´ | 16º±15´ | 15º±15´ | 15º±15´ | 15º±15´ | 11º±15´ | 11º±15´ |
| inlet height(mm) | 2072 | 2250-2350 | 2446 | 2552 | 2552 | 2716 | 2750 |
| inclinated angle of discharge duct | 45º | 45º | 45º | 45º | 45º | 45º | 45º |
| dumping direction of discharge duct | 180º | 180º | 180º | 180º | 180º | 180º | 180º |
| legth of discharge duct | 1900(1450+450)mm | 1900(1450+450)mm | 1900(1450+450)mm | 1900(1450+450)mm | 1900(1450+450)mm | 1900(1450+450)mm | 1900(1450+450)mm |
| the concrete slump that is suitable for conveying | 40-210 | 40-210 | 40-210 | 40-210 | 40-210 | 40-210 | 40-210 |
| residual rate | <1% | <1% | <1% | <1% | <1% | <1% | <1% |
| water tank capacity | 180L | 180L | 180L | 180L | 180L | 180L | 180L |

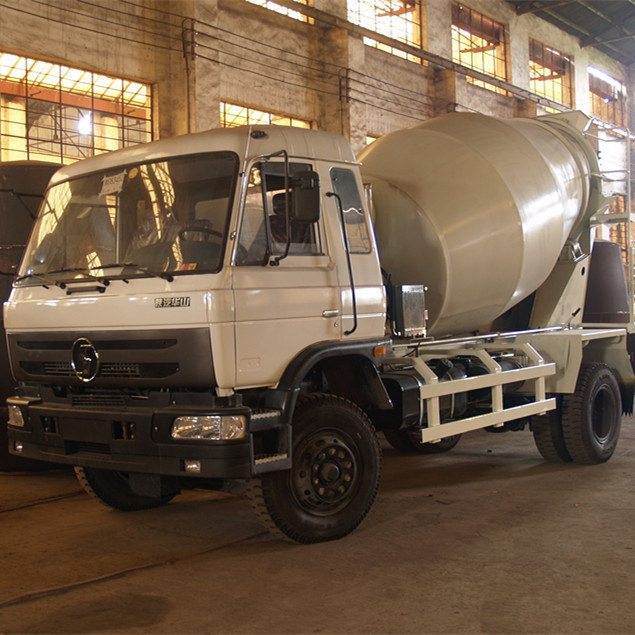

Product Image
