Detailed Description
Co

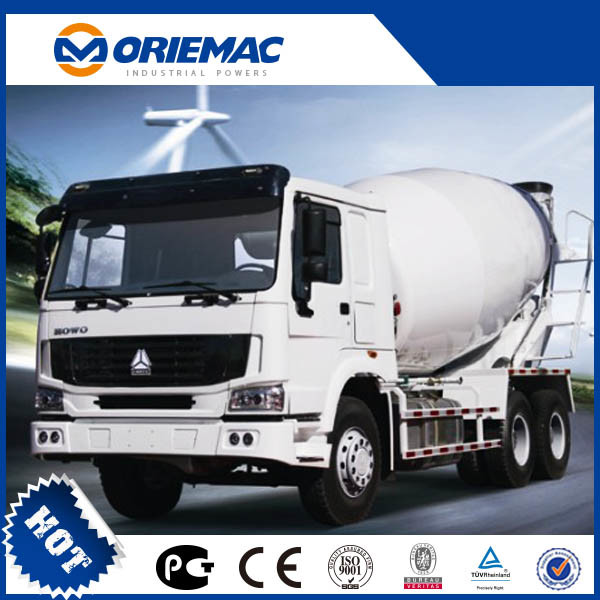

nCRETE MIXER TRUCK- ZZ1317N3647
HOWO /8x4 series /1800+3600+1350 wheelba
se/"VOLVO" Technology Cabin
8x4, Co
nCRETE MIXER TRUCK, HOWO70 cabi
n(no sleeping bed, A/C), with CNHTC WD615.69 engine, 336HP, with HW15710 transmission, ZF8098 steering, with 12.00R20 tyres
| Carriage dimension: | 12m³ |
| Dimension(Lx W xH)(unloaded)(mm) | 10820×2496×3900 |
| Approaching angle/Departure angle(°) | 19/23 |
| Overhang(front/rear) (mm) | 1500/1870 |
| Wheel base (mm) | 1800+3600+1350 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 14320 |
Engine
(Steyr technology, made in China) | Mode | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
| Fuel type | Diesel |
| Power, max(kw/rpm) | 247/2200 |
| Emission | EURO II |
| Fuel tanker capacity(L) | 300 |
Transmission
| Model | HW15710,10 forward&2 reverse |
Brake system
| Service brake | Dual circuit compssed air brake |
| Parking brake | spring energy, compssed air operating on rear wheels |
| Steering system | Model | ZF8098 |
| Front axle | HF9 |
| Rear axle | HC16 |
| Tyre | 12.00R20 |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | HOWO70 cab(no sleeping beds,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
|
