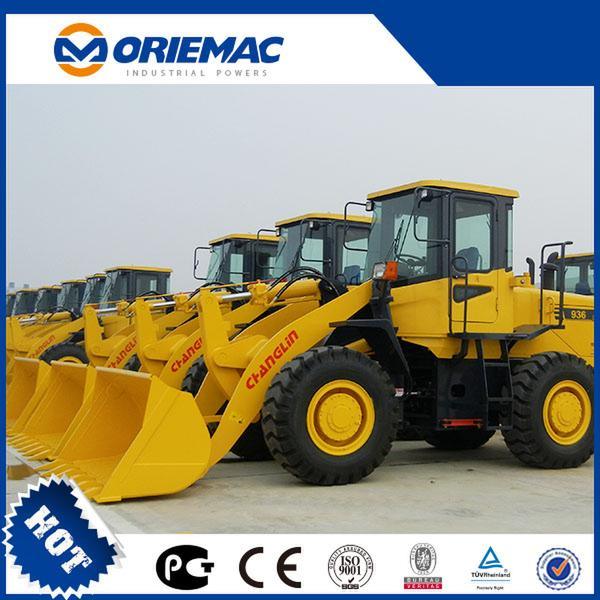

Changlin 3ton Zl30h Wheel Loader with Best Price

Best Quality Changlin Wheel Loaderbrand ZL30h with new condition
CHANGLINWheel Loader Parameter

Rated time	Overall Dimension Length(with bucket on ground) 6863(mm) Width(to outside of wheels) 2305mm) Bucket width 2460(mm) Height(To the top of the cab) 3095(mm) Wheel base 2750(mm) Tread 1855(mm) Min. ground clearance 370(mm) Main Technical Specification Rated load 3000(Kg) Operating weight 10200KG Rated bucket capacity 1.7(m3) Max. breakout force 96kN Max. dump clearance 2850(mm) Dump reach 1030(mm) Dump angle at any position ≥450 Min. turning radius (1) Outside of bucket 5600(mm) (2) Outside of rear wheel 5205(mm) Pivot angle frame 38+10 Oscillating angle of rear axle +110 Lifting time of bucket ≤5.1(sec.) Lowering time of bucket ≤3.0(sec.) Dumping time ≤1.1(sec.) Traveling speed(Km/h),3 forward and 3reverse (1) 1st gear forward 7.3 (2) 2nd gear forward 15.7 (3) 3rd gear forward 35 (1) 1st gear reverse 7.8 (2) 2nd gear reverse 16.8 (3) 3rd gear reverse 36 Diesel engine Model 6BT5.9 -C120 Type Direct injection. Turbocharged. Water cooling4 Rated output 87(KW) Inter-bore of cylinder/stroke 102 /120 (mm) Total exhaust of cylinder 5.9 (L) Voltage of starting motor 24(V) Rated speed 2200(r/min) Max. Torque 440(N.M) Starting type Electric Min. specific fuel consumption 220(g/Kw.h) Transmission System 1. Torque Converter Model YJH315A-4 (Shanxi Aerospace Power) Type 3-elements. Single stage Torque ratio 2.4 Cooling type Pressure oil circulating
Total cycling time	11secretary
Max.drawing force	145Kn
Max.breakout force	170Kn
Articulation angle	35.
Min.turn radius	6920mm
Climb ability	28.
Wheel base	3300mm
Tread	2200mm
Dumping clearance	3090mm
Dumping reach	1130mm
L×W×H	6863×2095×3095mm
Operating weight	16.6t
Clamp type
Min.clamping diameter	φ450/φ800mm
Dumping clearance	3230mm
Dumping reach	1845mm
L×W×H	8300×3016×3350mm
Operating weight	16.7t
