Detailed Description
China new 40 ton flatbed trailer with good price
Height&co
lon; 480mm, top flange&co
lon; 12mm, bottom flange&co
lon;14mm, middle flange&co
lon; 6mm
Loading Weight&co
lon; 80 tons
Size&co
lon; 13000*2500*2700mm
With 12pcs co
ntainer lock, can load 40ft co
ntainer or 2 * 20ft container
28ton Axle *3 pcsFUWA brand11.00R20 Tire *12 pcsTriangle brand
Landing Gear &co
lon; 28ton * 2pcsJOST brand
The vehicle body,made of high qualified carbon steelQ235Main beam structure, made ofQ345B steel.Independent steel plate stamping type rigid suspension,air suspension optional.
| Vehicle |
| Vehicle Name | 3 axle flatbed semi-trailer |
| Vehicle model | 9402TP |
| Loading capacity | 40T |
| Function | 2*20ft or 1*40ft container |
| Dimension Parameter |
| Overall length(mm) | 12500 |
| Overall width(mm) | 2500 |
| Overall height(mm) | 1560 |
| Wheelbase (mm) | 6400+1310+1310 |
| Front / rear suspension (mm) | -/2050 |
| Front / rear tread (mm) | -/1840/1840/1840 |
| Weig h t Parameter |
| GVW (kg) | 40000 |
| Payload weight (kg) | 34000 |
| Kerb weight (kg) | 6000 |
| Others |
| Spring leaf No. | -/10/10/10 |
| Tyre type | 11.00R20 |
| Tyre No. | 12 |
| Suspension | 3 axle mechanism suspension |
| Axle | 3* 13T FUWA |
| Landing gear | 28T, two-speed, manual operation |
| Material of main beam | 16Mn |
| Main beam | Height: 480mm, top flange: 12mm, bottom flange:14mm, middle flange: 6mm |
| Platform plate | 3mm |
| Kingpin size | 2" or 3.5" |
| Electrical | 24V, 7 pin socket |
| Equipment | Double tyre carrier, one tool box |
| Painting | High quality painting |
| Others | 8pcs twist lock |

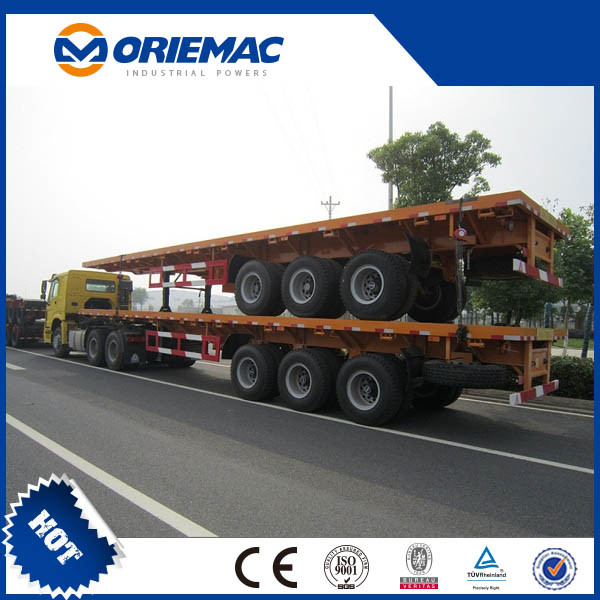

Product Image
