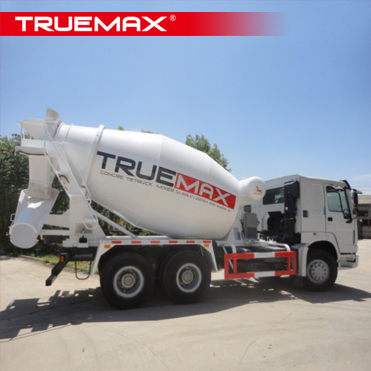

Truemax Supper Concrete Truck Mixer with Foton/HOWO/Hino Chassis

MORE TRUEMAX PROJECTS ,PLEASE CHECK OUR COMPANY SHOW.
http://cntruemax.en.made-in-china.com/company-show.html

1. Closed loop hydraulic system and constant hydraulic oil temperature controller are used. Key hydraulic accessories include: hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor and reducer are all made by internationally known brands and offer stable and reliable and reliable performances.

2. Pneumatic Water Supple System. The pssure is provided by the air tank on the chassis with pssure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.

3. Multi-outlet washing design. Cleaning requirements are met by the three fixed pipes for washing the agitator drum ,charging hopper and discharging hopper respectively ,and another flexible water outlet.

4. Three-point Operation System. One in the cab to allow control of the agitator drum to turn forward and reverse, and to perform the "feed" ,"discharge", "agitate" and "stop" functions .Two at the rear with one operation handle at each side to perform "charge" "accelerate" ,"discharge" ,"agitate" and "stop" .Three are interlocking.
Mixing Drum Structure
1.The drum body and blades are made by quality wearable exclusive steel plate with light weight of BaosteelB520JJ. And the drum is suit for transport both dry and wet materials.
2.The surface welding adopt manipulator double welding enables the strength structure and long service life.
3.Double pitch special designed blades ensure the fully mixing inside and low discharge surplus rate
4.Unique design of agitator inclined angle with the whole drum make the lower and stable center of gravity this makes the ,driving more steady and discharging more smooth, and gains better traffic ability.
5.The drum frame assembly adopt the flexible connection and reinforcing design. It ensures the load strength and safety driving.
Hydraulic System
1.Closed circuit hydraulic system and constant hydraulic oil temperature controller
2.Adopt world famous brand hydraulic pump, hydraulic motor,reducer and radiator. Also provide multi options for different requirement.
Water Supply
1.Pneumatic water supply system with large water tank which can wash different points including agitator drum, charging hopper and discharging hopper respectively
2.Rational layout and elegant appearance of washing pipes make the washing more convenient and rapid.

Chassis Brand	FOTON	HOWO	HINO
Chassis Model	BJ5163VLFHA	ZZ1257N36/38/4041A	YC5250GJBFS2PM4
Emission	EUROPEIII	CHINA III	CHINA IIII
Type power	YC6J190-33	WD615.69	P11C-VA
Rated power	140KW	247KW	259KW
Weight(kg)	16000KG	25000KG	25000KG
Total weight (kg)	8755KG	13220KG	13700KG
Rated capacity(kg)	7050KG	11650KG	11170KG
Speed	90km	90km	90km
Wheelbase (mm)	3600mm	3625/3825/4025+1350mm	4020+1410mm
Drive type	4x2	6x4	6x4
Tyre size	10.00R-20	11.00-12.00R20	12.00R20
Overall dimension (mm)	6755*2440*2800mm	9020*2496*3835mm	9240*2500*3900mm
Applicable to concrete truck mixer	3-5Cube	6-10Cube	8-12Cube
