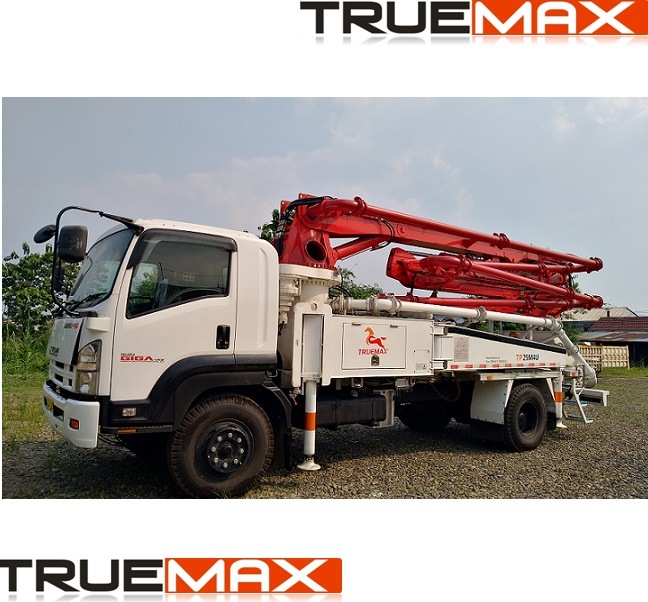

Tractor Truck for Truck-Mounted Boom Pump

Be suited for different project application especially the small site and bridge projects. Upper parts can be designed according to customers' required chassis. And we could supply the chassis made in China.
Equipped with STIEBEL(from Germany) PTO box to connect engine with hydraulic oil pump, making the pump group run more stable and efficient.

Boom System:The boom system is designed by Multi physics analysis and testing. The steel is made by imported HSLA (High strength low alloy steel). All the welding are 100% inspected to ensure the structure rational and high reliability.

Adopt "R" type folding boom sections easy for special project. And the boom speed is adjusted
sleeplessly, with compensated pssure, proportion system of sensitive to loading, as assure the flexible working of the boom.Maximum shock-absorbing controlled by multiple valve controller.

Pumping System:Tungsten steel glass plate and cutting ring guarantee the long using life.Automatic retraction of the concrete piston provides a more convenient and easier maintenance for the pumping system.
Automatic accelerator tracking system adjust the accelerator according to the actual pumping condition to save more diesel oil.

Hydraulic & Electrical System:Adopt double pumps with double circuits system and world famous hydraulic components.Variable displacement axial piston pump make the swing cylinder more stable and powerful.Operated by manual/panel/radio remote controller(NBB)

Chassis Brand	DONGFENG	SINOTRUCK	FAW	ISUZU	ISUZU
Chassis Model	EQ5161TZZKJ	ZZ5347N4647D1	CA3312P2K2L4T4EA80	CYZ51Q	CYH51Y
Tail Gas Exhaust Standard	China III	China IV	China III	EuroIII	EuroIII
Engine Type	YC6J180-46	D10.34-40 340	WP10.380E32	6WF1A	6WF1D
Engine Power	132KW/2500RPM	249KW/2200rpm	276KW/1800rpm	265KW/1800rpm	287KW/1800rpm
Engine Displacement	6.494L	9.726L	9.726L	14.256L	14.256L
Drive Type	4*2	6*4	8*4	6*4	8*4
Wheel base	4700MM	4600+1350MM	1860+3460+1350MM	4595+1310MM	1850+4605+1310MM
Max.Travel Speed	88km/h	80km/h	85km/h	85km/h	89km/h
Min.Turning Radius	8.8m	11.9m	11.9m	9.2m	11.9m
Approach/Departure Angle	20/12°	16/19°	24/39°	32/11°	32/8°
Tyre Type	10.00R20	12.00-20	12.00R20-18	295/80R22.5	295/80R22.5

Truemax Overview
TRUEMAX was established in 2003 at Hangzhou, China. In the past 10 years, TRUEMAX has established over 10 manufacturing base, to offer the one-stop services in construction machinery filed, including R&D, designing, manufacturing, quality control and delivery.
With core principle of "True to Quality, Ture to Customer", our product has been exported to more than 100 countries with high customer appciation & brand popularity.
TRUEMAX provide the full series of construction machinery and one-stop overall solution. Our product range covers p-fabrication including aggregate crushing, dedusting and block making; concrete series including mixing, batching, pumping & placing; construction series, such as tower crane, building hoist, suspension platform and lifting basket; light construction machinery, including compacting, cutting, surface finishing machines & rebar processing machines.
Especially the concrete placing boom, we're the No. 1 in term of products variety, with top quality placing boom of placing radius ranging from 10 meters to 51 meters over 10 different series, the excellent quality & performance has been tested & approved by being used in lots of world famous high buildings.
The manufacturing base of TRUEMAX adopts 6S management system. Quality control system are implemented strictly in the whole procedures, including components purchasing, fabricating and manufacturing, packing and dispatch p-inspection, ensuring the perfect quality assurance for all of our products. With international certificates like ISO9001:2008, CE & SGS, TRUEMAX guarantee the international first-class level for all of our products.
At psent, TRUEMAX is the"Grade A Export Enterprise of China Customs", "Famous Export Brand of Zhejiang", " Famous Export Brand of Hangzhou", "High & New Technology Enterprise of Hangzhou", "Top 100 innovation-type foreign trade enterprise of Hangzhou"&" Key enterprises of Xiacheng district, Hangzhou", with support from Zhejiang Public Foreign Trade Service Platforms consecutively in 2012 and 2013.
"Quality achieves outstanding success, innovation leads the bright future", our working principle has leads the rapid expansion of TRUEMAX, with branches and spare parts distribution centers established oversea step by step. We're targeting to complete the global layout of TRUEMAX Agent within next 2 years, and "TRUEMAX 6S" stores within 5years.
In the coming days, TRUMAX will continue to forge ahead, make our best efforts to create the best platform for career performance, as well as to realize the maximized mutual benefit with all TUREMAX friends, partners, agents & clients. "View Broad, Ambitions Boundless", at a new height, we wish to join hands with all the ambitious friends together, contributing to the consummation of the first-class quality construction machinery industry, and creating the new glory constantly.
