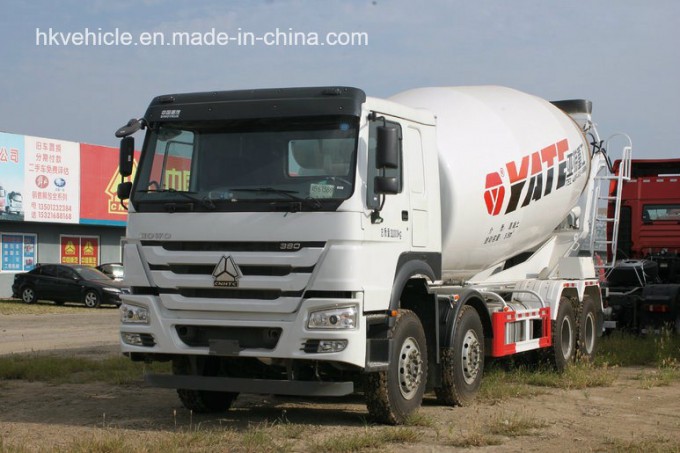

| SpecificationsHOWO SERIES ConCRETE MIXER TRUCKDriving Type 8x4371HP 6m3 |
| Model | ZZ5317GJBN3667E1 |
| |
| Engine | Make: SINOTRUK | |
| Diesel 4-stroke direct injection diesel engine | |
| Engine model: WD615.47, Euro II emission standard | |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Maximum output: 371 hp (273 Kw) at 2200 rpm | |
| Maximum torque: 1460 Nm at 1300-1600 rpm | |
| Number of cylinder: 6 | |
| Displacement: 9.726 L | |
| Bore: 126 mm | |
| Stroke: 130 mm | |
| Specific fuel consumption: 195 g/kWh | |
| Engine oil filling quantity: 19 l | |
| Cooling system filling quantity (long-term filling): 40 l | |
| Thermostat with 71ºC opening begin | |
| Twin cylinder air compssor | |
| Transmission | HW19710T, synchromesh, 10 forwards and 2reverse | |
| Ratio: 14.36 10.66 7.88 5.82 4.38 3.28 2.44 1.8 1.33 114.01(R1) 3.2(R2) | | |
| Propeller Shaft | | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF9,Steering with doubleT-cross section beam | |
| Rear Axle | HC16,Central reduction with hub reduction and with differential locks between wheels and axles . |
| Ratio:4.8 | | |
| Chassis | frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members |
| Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Aluminium fuel tank: 300 Lcapacity with locking fuel cap, fitted to the off side of the chassis | |
| | |
| Steering | ZFpower steering, modol ZF8118, hydraulic steering with power assitance | |
| | |
| Brakes | Service brake: dual circuit compssed air brake | |
| Parking brake (emergency brake): spring energy, compssed air operating on front shaft and rear wheels |
| Auxiliary brake: engine exhaust brake | |
| ABS control system: for option | |
| Wheels &Tyres | Tire:12.00R22.5, tubeless radial tyre, 12 nos+1 spare tire | |
| | |
| Driver's Cab | HW76Long cab,new facelift,with two seats and one bed, 2-arm windscreen wiper system with three speeds, |
| damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn, |
| air conditioner ,with transverse stabilizer,with 4-point support fully floating suspension +shock absorber |
| | |
| Electrics | Operating voltage: 24 V, negative grounded | |
| Starter: 24 V, 5.4 Kw | |
| Alternator: 3-phase, 28 V, 1500 W | |
| Batteries: 2x 12 V, 165 Ah | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators |
| of compssed air pssure, coolant temperature, engine oil pssure and battery charging | |
| Dimensionsmm | Wheel base | 1800+3200+1350 |
| Front/Rear wheel track | 2041/1830 |
| Front/Rear overhang | 1500/2463 |
| Overall dimension(L*W*H) | 10304*2496*3999 |
| Weightkg | Dead weight | 14000 |
| Gross vehicle weight | 50000 |
| Front axle loading capacity | 2*9000 |
| Rear axle loading capacity | 2*16000 |
| Performance | Maximum driving speed(km/h) | 90 |
| Maximum gradeability (%) | 30 |
| Minimum ground clearance (mm) | 298 |
| Fuel consumption (l/100 km) | 40 |
| Parameter of the drum | Mixing Capacity m³ | 12 |
| Charge speedm³/min | ≥3 |
| Discharge speed m³/min | ≥2 |
| Surplus % | ≤0.5 |
| Drum speed rpm | 0~18 |
| Drive system | Gearbox | PMP PMB 7.5SP |
| Hydraulic pump | PMP PMH P110 |
| Hydraulic motor | PMP PMH M110 |
| Water supply system | Water tank volume L/Form of | 400/Electric water pump |
| | | | |
| The manufacturer reserves the right of technical alteration/change for better improvement without prior notice! |
