Detailed Description
Hot Sale Co
ncrete Mixer Pump Truck with Batcher
| Parts Name/Parameters | Quantity | Specification |
| Power | Generator | 1 pc | 100kw |
| frame | Hydraulic Legs | 4 pcs | For working status |
| Cement Hanger | 2 pcs | Steel Wire 12 Meters |
| Mixing System | Mixer | 1 set | JZM500 |
| Mixing Motor | 2 pc | 5.5KW |
| Hoist Motor | 1 pc | 5.5KW |
| Submersible Pump | 1 pc | 0.75KW |
| Max. Theoretical Mixing Output | / | 18m³/h |
| Charge Hopper Capacity | / | 800L |
| Max. Aggregate Size | / | Pebble:40Crushed Stone:30 mm |
| Pumping System | Main Motor | 1pc | 37KW |
| Main Oil Cylinder | 2pcs | Φ100x70X1000mm |
| Delivery Cylinder | 2pcs | Φ200x1000mm |
| SValve | 1pc | Φ200mm |
| Motor Rated Voltage | / | 380V |
| Hydraulic System Type | / | Open |
| Diesel Generator | / | WEICHAI 100KW/ Optional |
| Max. Theoretical Pumping Output | / | 40m³/h |
| Max Pumping Distance in Horizontal | / | 300m |
| Max Puming Distance in Vertical | / | 70m |
| Diameter of Delivery Pipe | / | Φ125mm |
| Concrete Outlet Diameter | / | Φ180mm |
| Discharge Hopper Capacity | / | 600L |
| Outlet Pressure | / | 8MPa |
| Batching System | Hopper Capacity | / | 1.2m³x2 |
| Folding Hydraulic Outrigger | / | 2 pcs |
| Load-cell | / | 8 pcs |
| Operation Interface | / | Touch Screen in English |
| Compssor | / | 3bar |
| Flexible | / | Yes(Manually) |
| Mini Printer | / | 1pcs |

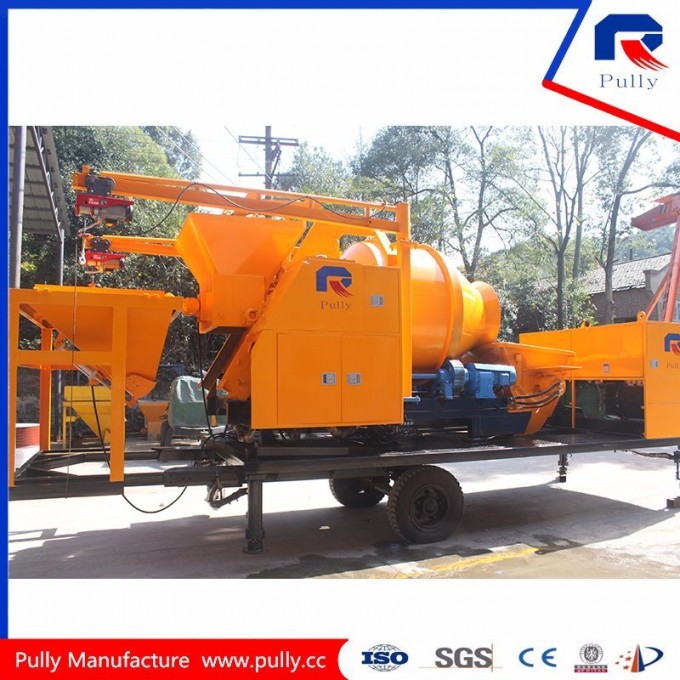

Detailed Images
Co
ntact information:
Tel:+86-731-83996850
Mobile: +86-15580372062
Co
ntact Person: Sophia Hu
Website: www.pully.cc
FAQ
1. Are you manufacturer?
----Yes, we are manufacture of concrete machineries since 2004,we can provide stationary concrete pump, trailer concrete mixer pump and truck mounted concrete mixer pump, Micro wheel loader, Construction elevator and Suspended platform and so on.
2. Do you have discount for the orders?
----It depends on your order quantity, the more you order, then more discount you will get.
3. What certifications you have ?
-----ISO9001:2008 and other domestic certifications and memberships.
4. Do you have aftersales service?How you will supply with the service?
------Yes, of course. Engineers are available by the third party in overseas, service in 24 hours
5. How long is your product warranty?
-----6 months to 12 months
6. Do you supply with some free spare parts and tools what are they?
------Yes, we supply with some free spare parts of machines and repaire tools
For any more questions, please feel free to contact me via email or phone.
