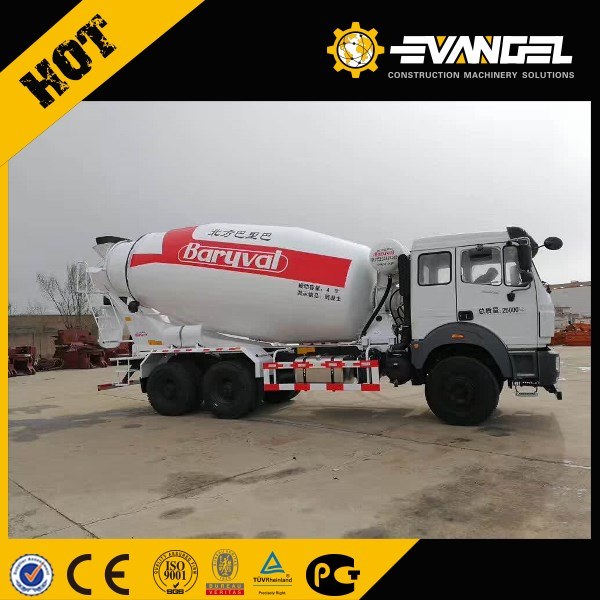

Beiben Chassis 6X4 9m3 Concrete Truck Mixer

BEIBEN chassis 6X4 10m3 concrete truck mixer
V3-BY:The overall designing of the vehicles is fashionable and pleasing to the eyes. The brand characteristic V finds its way into the designing of the front side, adding up to the grandeur and solemn air. The brand new V3 driving cab is created cooperatively by the company and European famous designing company. The internal instrumental panel is in the roundabout style popular in Europe, pleasing to the eyes. Interior trimming is made of imported materials with no peculiar smell, which ensures the health of drivers and passengers. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, large mixing volume of tanks which matches the engines with large horsepower, all making it suitable for use in all kinds of construction sites.

Sales No.		2638B
Dimension(mm)	Long	9300
	Wide	2500
	High	3900
Wheel base(mm)		3800+1450
Drive		6×4
Engine	Model	WP10.380E32
Cabin		V3/ Long cab,flat roof
Clutch(mm)		Φ430
Front Axle		7.5T
Rear/Mid Axle	Model/speed radio	Double Reduction Driving Axle /5.263
Steering System		ZF8098
Braking System		Dual Circulation Air Brake System
Fuel Tank(L)		400L
frame/mm		317×70×8.5+7
Tire		12.00R24
Front/Rear Overhang		1410/2640
Transmission		9T-180
Curb Weight(kg)		13785
Up Body Volume(m³)		9
Max Speed(km/h)		90
