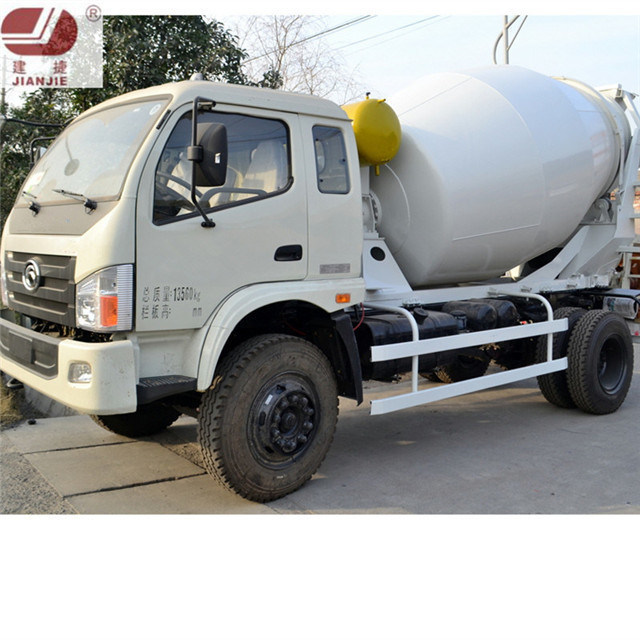

12 Cubic Meters Concrete Mixer Truck

12 Cubic Meters Concrete Mixer Truck, Concrete Machinery
Feature
The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-

Free driving seat, the electric controlled glass and the central lock device,

This guarantee the driving comfortability; At the same time, the knee shield guard improve

The security of the driver and the passengers. This cab also bring down the drag coefficient

To reduce the fuel consumption.

The engine: The tractors used Cummins engine which provide excellent gradeability,

Strong horsepower and bring down the oil consumption, reduce the operating cost for client.

The chassis: The original Dongfeng chassis make the tractors have big ground clearance

And excellent trafficability and adaptability to various vile roads.

The gearbox: The Fast Brand gearbox adopt serration processing technology to lower

The noise and vibration and increase the reliability.

The Hydraulic pump, motor, reducer: Original speed reducer of Italy brand and hydraulic

Main technical parameter of the top machine

model	JC3m³-D	JC4m³-D	JC6m³-D	JC8m³-D	JC8m³	JC10m³	JC12m³
overall dimension(L*W*H)(mm)	3983*(1100+943)*2175	4350*(1100+950)*2350	5180*(1125+1046)*2580	6015*(1150+1100)*2632	6015*(1150+1100)*2632	6744*2372*2716	7300*2372*2750
the dimension of bottom machinery(L*W*H)(mm)	3200*860*120	3600*860*120	4430*860*140	4900*860*160	4900*860*140	5580*860*140	6100*860*140
nominal mixing capacity of tank	3m³	4m³	6m³	8m³	8m³	10m³	12m³
geomerical volume of tank	5.5m³	6.8m³	9.6m³	13.4m³	13.4m³	16.4m³	19m³
coefficient of loading ration	0.545	0.588	0.625	0.545	0.545	0.61	0.63
drum roating speed	0-14rpm	0-14rpm	0-14rpm	0-12.5rpm	0-14rpm	0-14rpm	0-14rpm
inclinated angle of mixing tank axial line	16º±15´	16º±15´	15º±15´	15º±15´	15º±15´	11º±15´	11º±15´
inlet height(mm)	2072	2250-2350	2446	2552	2552	2716	2750
inclinated angle of discharge duct	45º	45º	45º	45º	45º	45º	45º
dumping direction of discharge duct	180º	180º	180º	180º	180º	180º	180º
legth of discharge duct	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm	1900(1450+450)mm
the concrete slump that is suitable for conveying	40-210	40-210	40-210	40-210	40-210	40-210	40-210
residual rate	<1%	<1%	<1%	<1%	<1%	<1%	<1%
water tank capacity	180L	180L	180L	180L	180L	180L	180L
