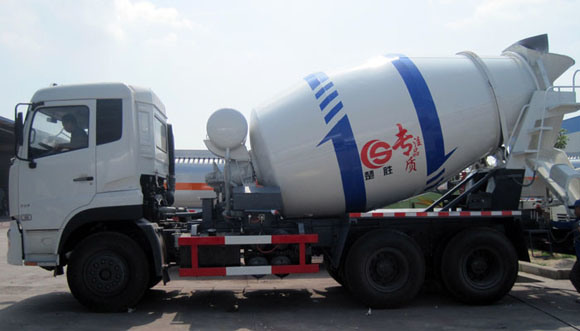

| Dongfeng Tianlong rear double axles concrete mixer truckTechnical Parameters |
| Product: | Dongfeng Tianlong rear double axles concrete mixer truck | Overall dimension: | 9200×2500×3880(mm) |
| Chassis model: | DFL5250GJBA | Compartment dimension: | ××(mm) |
| Gross weight: | 25000(kg) | Approach angle/Departure angle: | 25/17(°) |
| Rated payload: | 11665,11600(kg) | Front/rear suspension: | 1460/2740(mm) |
| Kerb weight: | 13205(kg) | Max speed: | 80(km/h) |
| Engine: | ISLe325 30 ISLe340 30 ISLe375 30 |
| Displacement: | 8900 8900 8900(ml) | Power: | 239 250 275(kw) |
| Manufacturer: | |
| Emission standard: | GB3847-2005,GB17691-2005 Euro 3 |
| Axle nos: | 3 | Front tread: | 1986(mm) |
| Wheelbase: | 3650+1350(mm) | Rear tread: | 1860/1860(mm) |
| Tyre nos: | 10 | Tyre specification: | 10.00-20,10.00R20,11.00-20,11.00R20 |
| Fuel type: | Diesel | Leaf spring nos: | 8/12 |
| Axle load: | 7000/18000 | Passenger nos | 2,3 |
| Remarks: | Tank volume:5.42 m3. |
| More pictures: | |
| Please contact us if you want more product information, we are ready to provide service for you |
