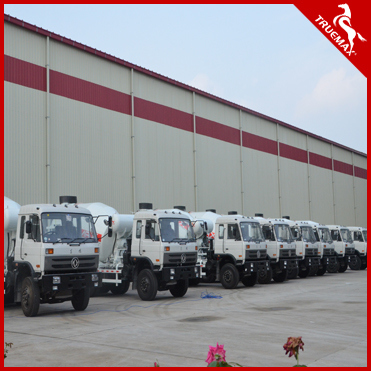

3-12cbm Cement Mixer Transit Mixer Concrete Mixer Truck

1. Closed loop hydraulic system and constant hydraulic oil temperature controller are used. Key hydraulic accessories include: hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor and reducer are all made by internationally known brands and offer stable and reliable and reliable performances.

2. Pneumatic Water Supple System. The pssure is provided by the air tank on the chassis with pssure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.

3. Multi-outlet washing design. Cleaning requirements are met by the three fixed pipes for washing the agitator drum ,charging hopper and discharging hopper respectively ,and another flexible water outlet.

4. Three-point Operation System. One in the cab to allow control of the agitator drum to turn forward and reverse, and to perform the "feed" ,"discharge", "agitate" and "stop" functions .Two at the rear with one operation handle at each side to perform "charge" "accelerate" ,"discharge" ,"agitate" and "stop" .Three are interlocking.

SPECIFICATIONS	7M³	9M³	10M³
Geometric volume of drum(m³)	11.3	14.91	16.2
Mixing capacity(m³)	7	9.64	10
Material of blades/drum	Q345MN	Q345MN	B520JJ
Inclination angle for drum(@)	15	12	13
Padding rate(%)	61.94%	64.65%	63%
Residual rate(%)	<0.16%	<0.16%	<1%
Charging speed(m³/min)	≥3	≥3	≥3
Discharging speed(m³/min)	≥1.2	≥1.2	≥2
Mixing speed(r/min)	50-220	0-14	70-260
Capacity for water tank(|)	350	350	350
Air pssure(mpa)	0.4	0.4	0.4
Max.External diameter of drum(mm)	2118	2342	2432
Length of the drum(mm)	3868	4764	4811
A Upper-fixing Length(mm)	5930	6600	6685
B Subframe Length(mm)	5090	5760	5575
C Chute Position(mm)	840	840	850
D Center of Gravity when Fully Load(mm)	2385	2695	2750
E Hopper Height(mm)	2500	2570	2660
F Upper-fixing Height(mm)	2565	2635	2785
Overall dimension(L*W*H/mm)	5930*2490*2565	6600*2490*2635	6685*2490*2785
Weight(Kg)	3900	4500	5000
Water supple	Air pssure	Air pssure	Air pssure
